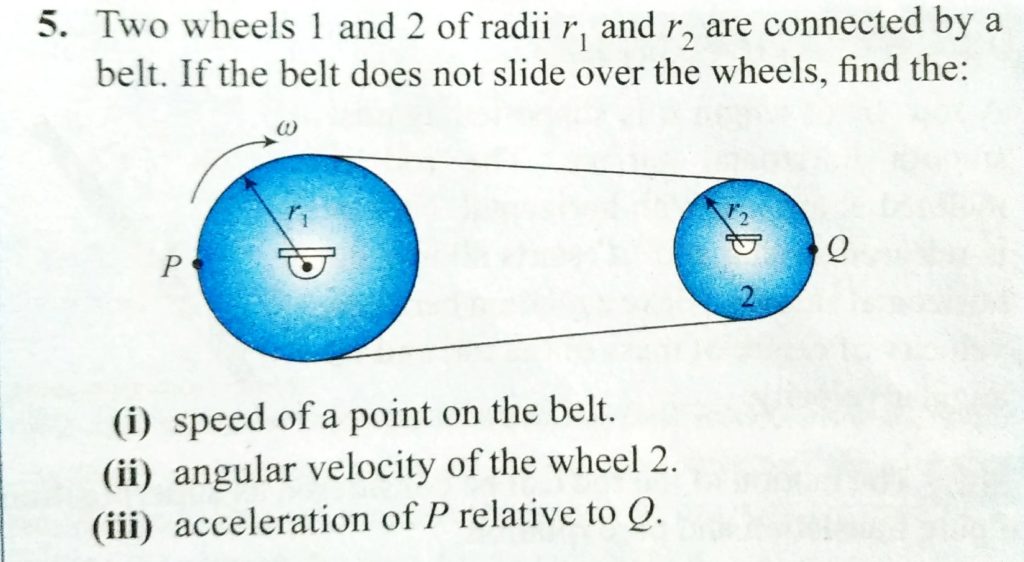

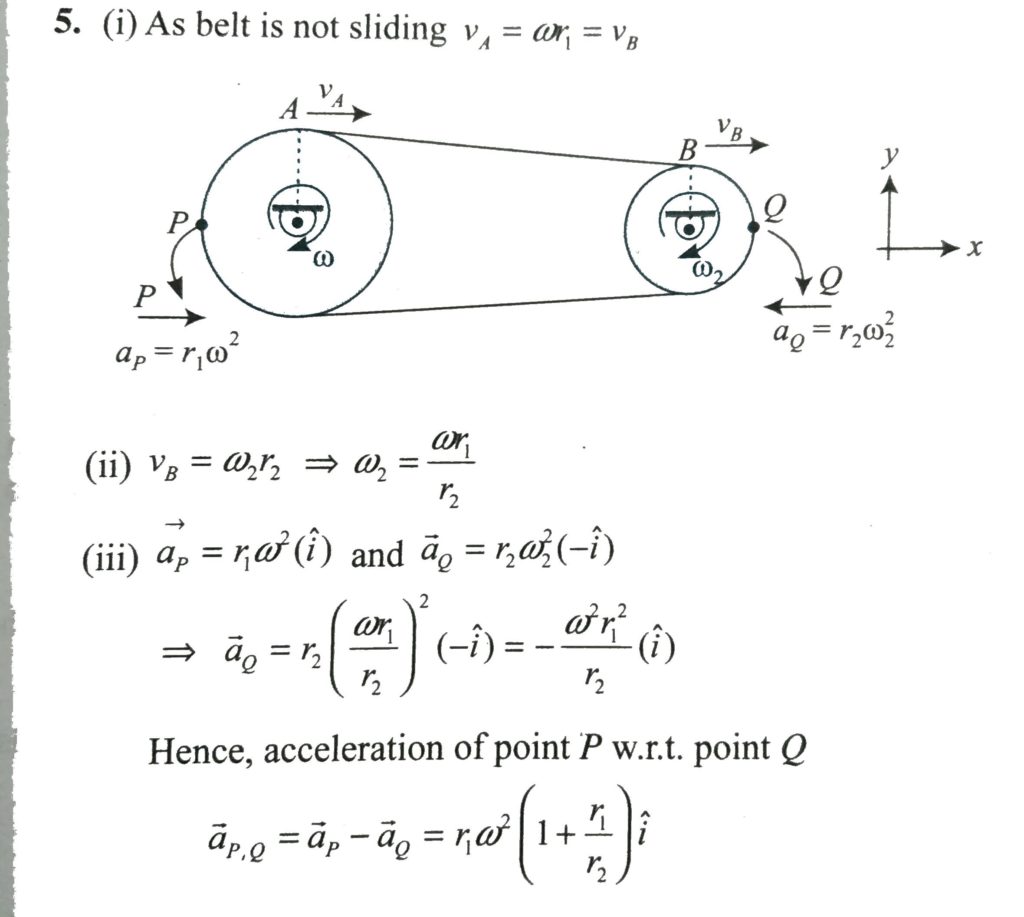

Two wheels 1 and 2 of radii r1 and r2 are connected by a belt. If the belt does not slide over the wheels, find the i) speed of a point on the belt. ii) angular velocity of the wheel 2. iii) acceleration of P relative to Q.

find the i) speed of a point on the belt. ii) angular velocity of the wheel 2. iii) acceleration of P relative to Q. Two wheels 1 and 2 of radii r1 and r2 are connected by a belt. If the belt does not slide over the wheels
