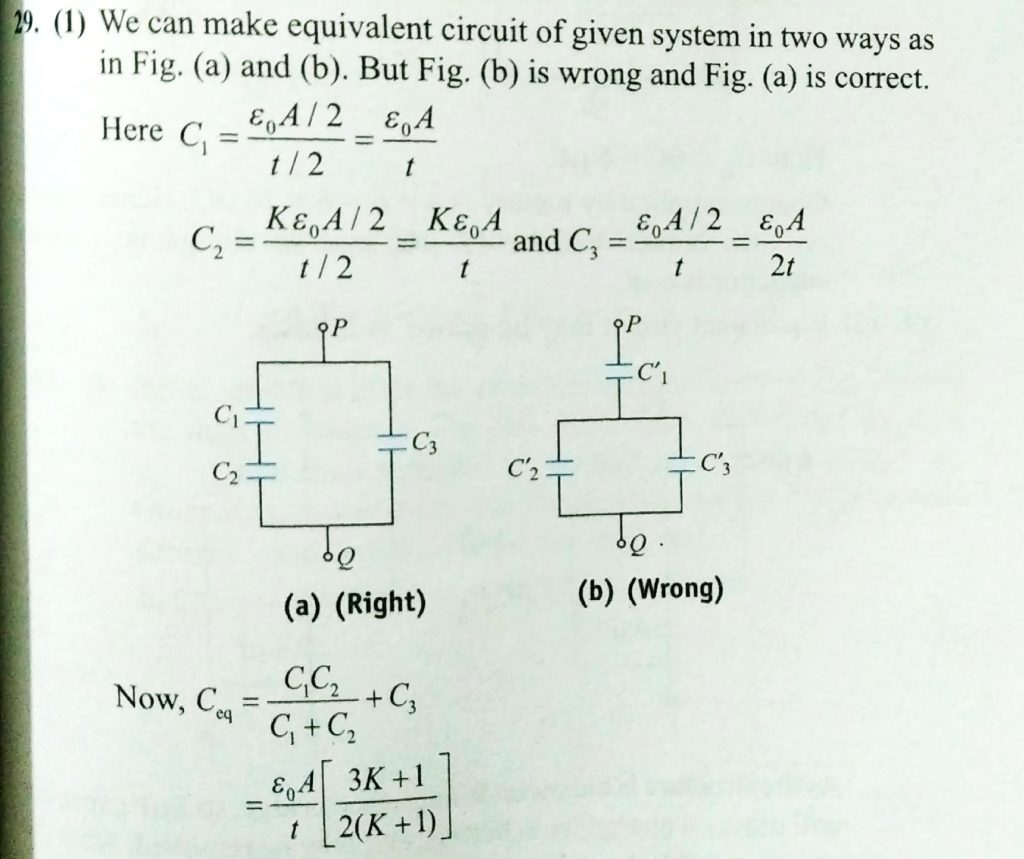

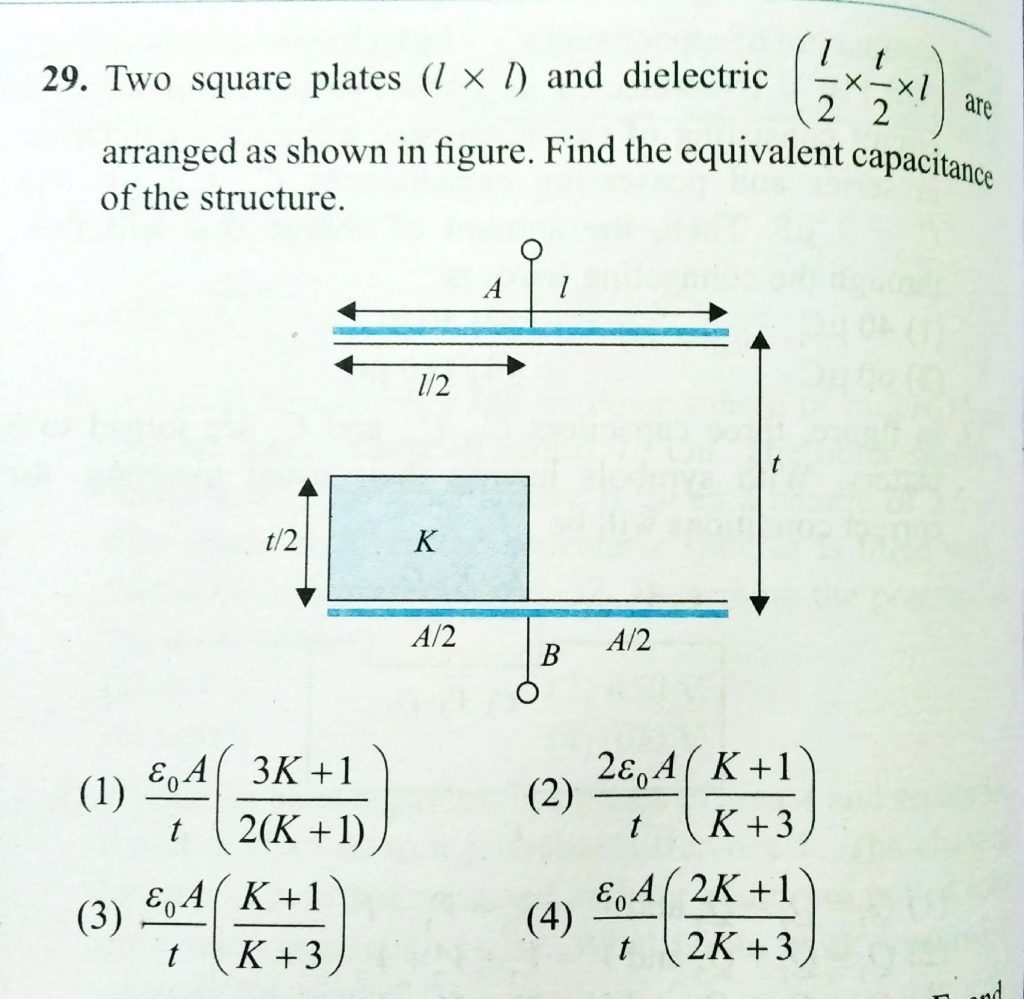

Two squares plates ( l x l ) and dielectric [1/2 x t/2 x l ] are arranged as shown in figure. Find the equivalent capacitance of the structure.

Two squares plates ( l x l ) and dielectric [1/2 x t/2 x l ] are arranged as shown in figure. Find the equivalent capacitance of the structure.
