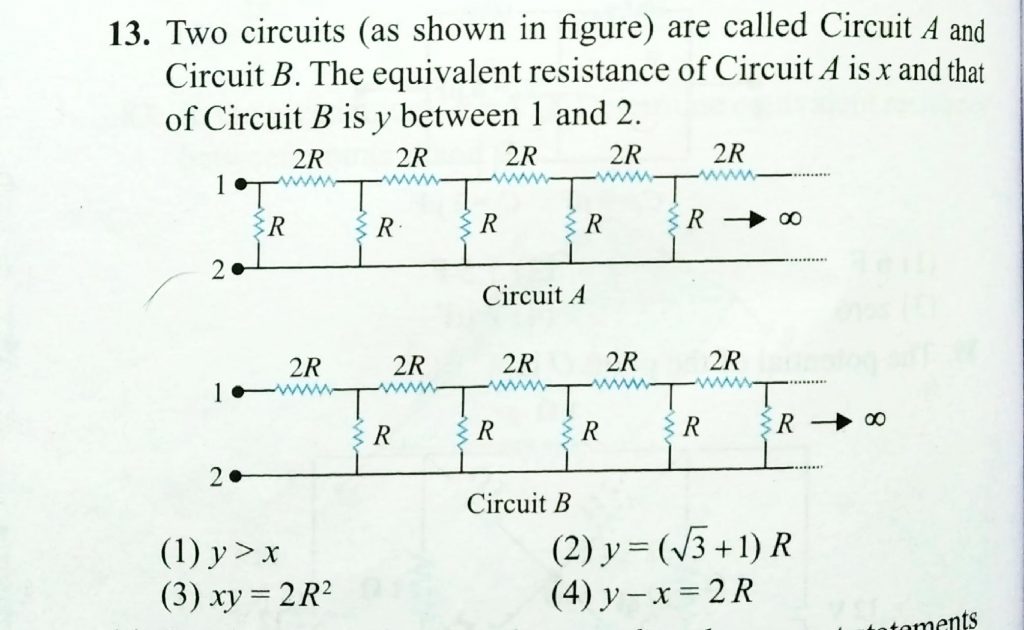

Two circuits (as shown in figure ) are called circuit A and circuit B. The equivalent resistance of circuit A is x and that of circuit B is y between 1 and 2.

Two circuits (as shown in figure ) are called circuit A and circuit B. The equivalent resistance of circuit A is x and that of circuit B is y between 1 and 2.
