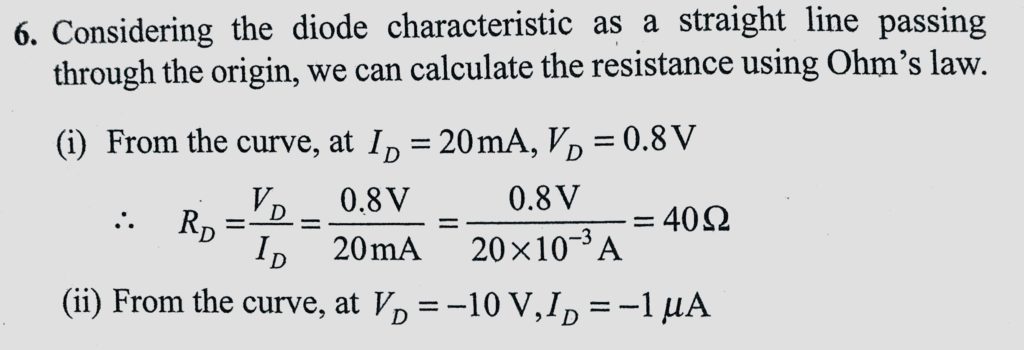

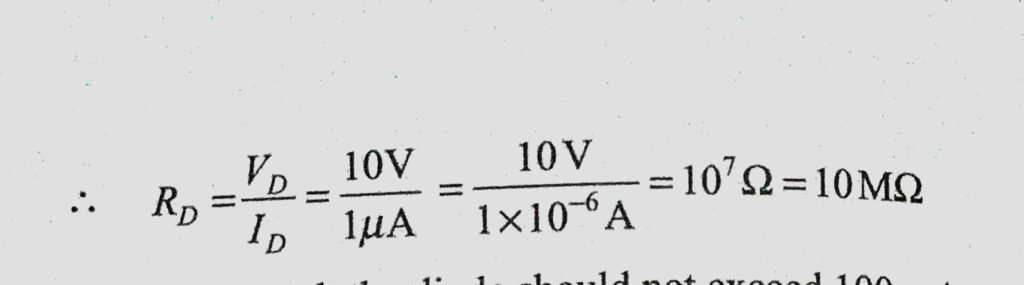

Sahay Sir > Question Answers > Uncategorised (JEE Advanced Physics by BM Sharma + GMP Solutions) > The volt-ampere characteristic of a silicon diode is shown in figure. Determine the resistance of the diode at (1) ID = 20 mA and (2) VD = -10 V.

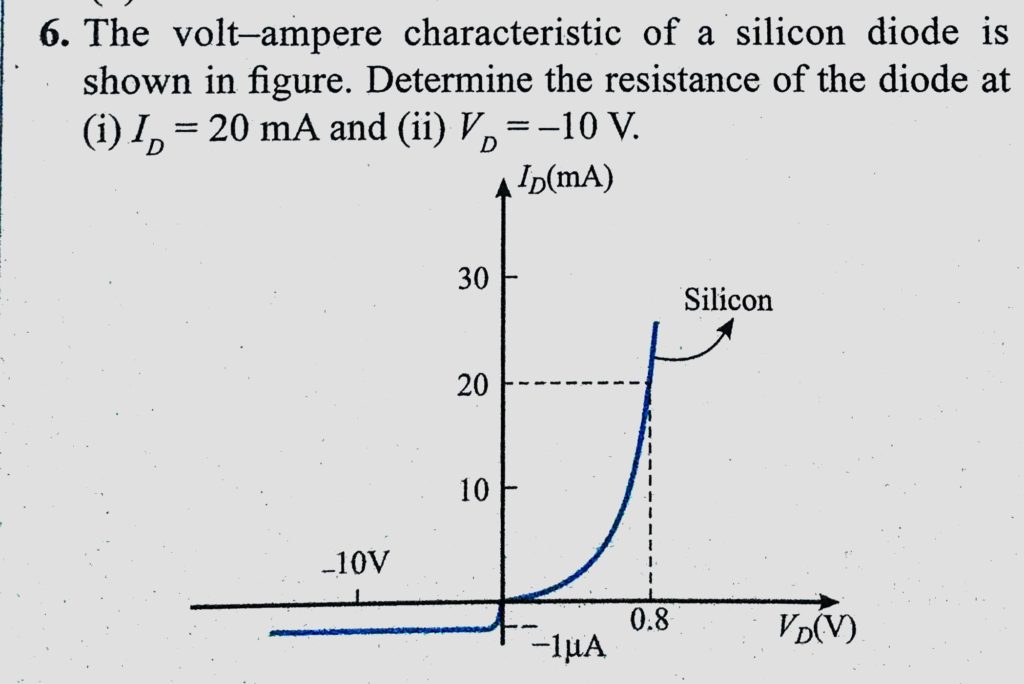

The volt-ampere characteristic of a silicon diode is shown in figure. Determine the resistance of the diode at (1) ID = 20 mA and (2) VD = -10 V.

The volt-ampere characteristic of a silicon diode is shown in figure. Determine the resistance of the diode at (1) ID = 20 mA and (2) VD = -10 V.
