Sahay Sir > Question Answers > Uncategorised (JEE Advanced Physics by BM Sharma + GMP Solutions) > The switch in figure Iis connected to position a for a long time interval. At t=0, the switch is thrown to position b. After this time , what are (a) the frequency of oscillation of the LC circuit Hz (b) the maximum charge that appears on the capacitor µC (c) the maximum current in the inductor mA (d) the total energy the circuit possesses at t = 3.00 s µJ

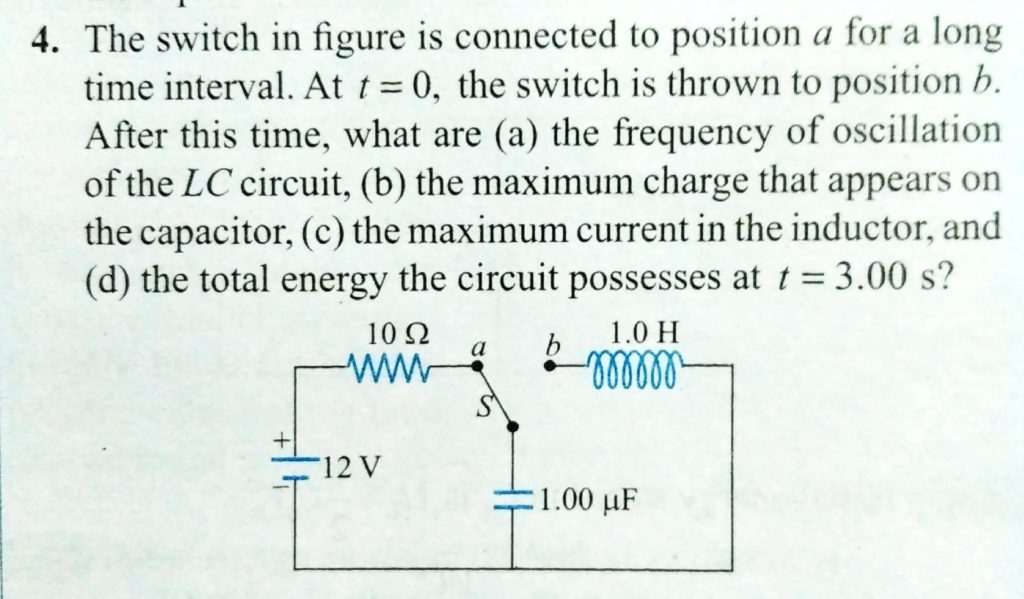

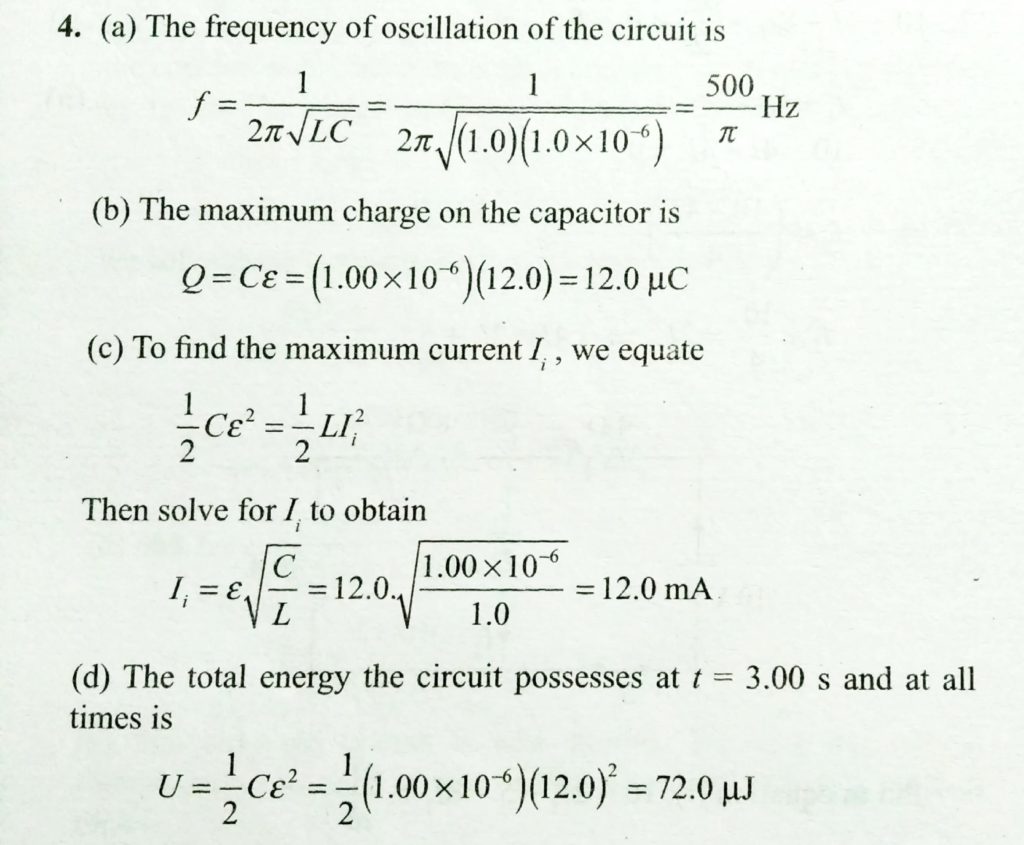

The switch in figure Iis connected to position a for a long time interval. At t=0, the switch is thrown to position b. After this time , what are (a) the frequency of oscillation of the LC circuit Hz (b) the maximum charge that appears on the capacitor µC (c) the maximum current in the inductor mA (d) the total energy the circuit possesses at t = 3.00 s µJ

A 1.00 μF capacitor is charged by a 40.0 V power supply. The fully charged charged capacitor is then discharged through a 10.0mH inductor. Find the maximum current in the resultaing oscillations. The switch in figure Iis connected to position a for a long time interval. At t=0 the switch is thrown to position b. After this time
