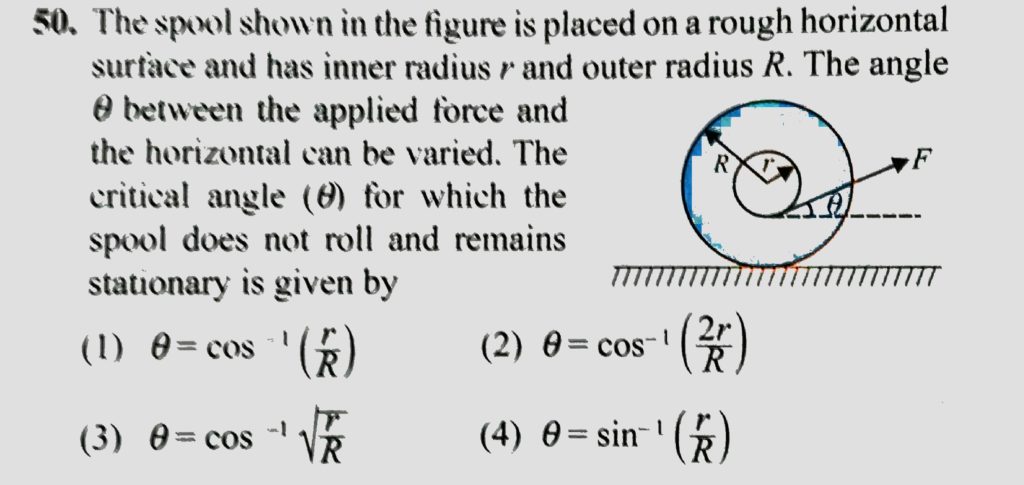

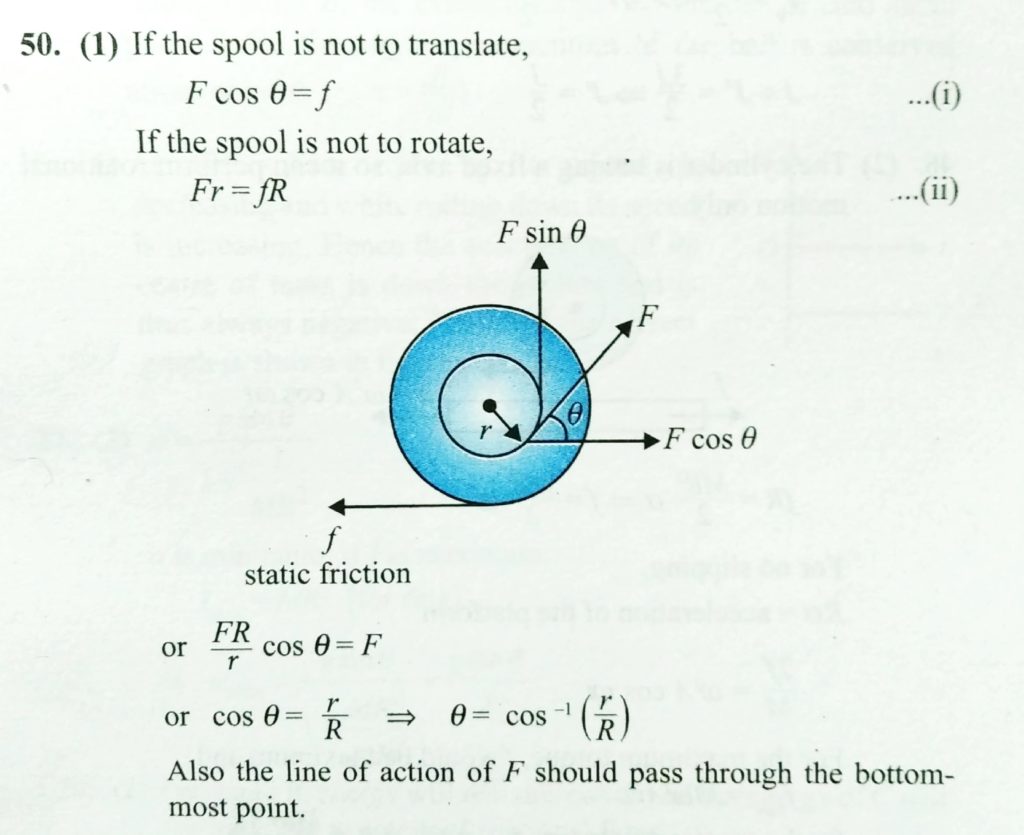

The spool shown in the figure is placed on a rough horizontal surface and has inner radius r and outer radius R. The angle θ between the applied force and the horizontal can be varied. The critical angle θ for which the spool does not roll and remains stationary is given by

A Disc of mass m and radius R moves in the x-y plane as shown in figure. The angular momentum of the disc about the origin O at the instant shown is
