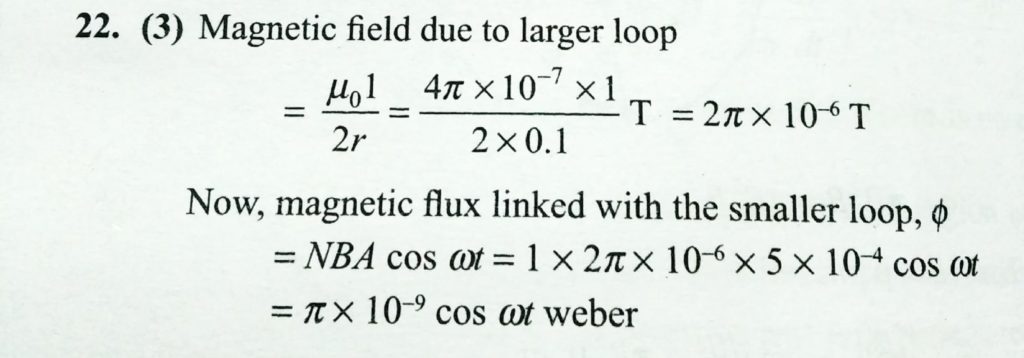

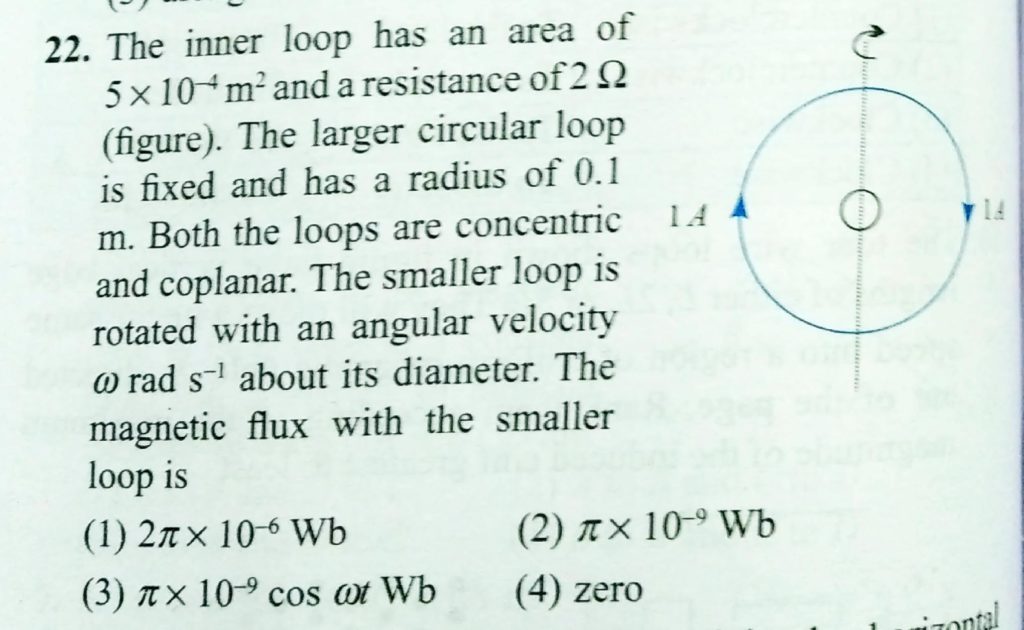

The linear loop has an area of 5×10^−4 m^2 and a resistance of 2 Ω. The larger circular loop is fixed and has a radius of 0.1m. Both the loops are concentric and coplanner. The smaller loop is rotated with an angular velocity ω rad/s about its diameter. The magnetic flux with the smaller loop is

An equilateral triangular loop ADC having some resistance is pulled with a constant velocity v out of a uniform magnetic field directed into the paper (figure). At time t=0 side DC of the loop is at edge of the magnetic field. The induced current (i) versus time (t) graph will be as
