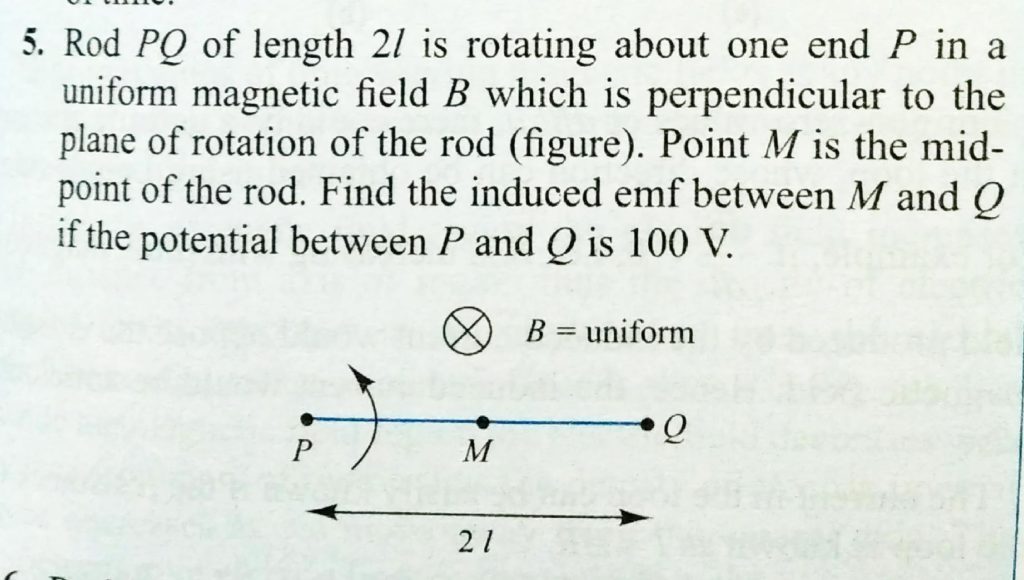

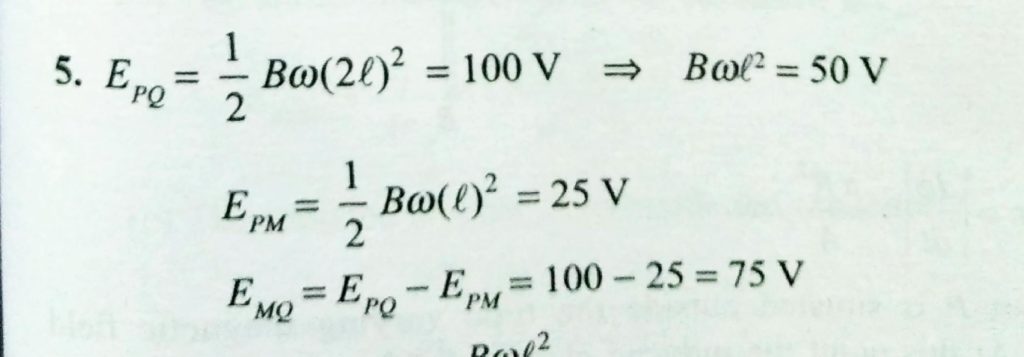

Rod PQ of length 2 l is rotating about one end P in a uniform magnetic field B which is perpendicular to the plane of rotation of the rod . Point M is the mid- point of the rod. Find the induced emf between M and Q if the potential between P and Q is 100 V.

Figure shows a rectangular loop moving in a uniform magnetic field. Show the electrical equivalence of each branch. what is the net induced emf ?
