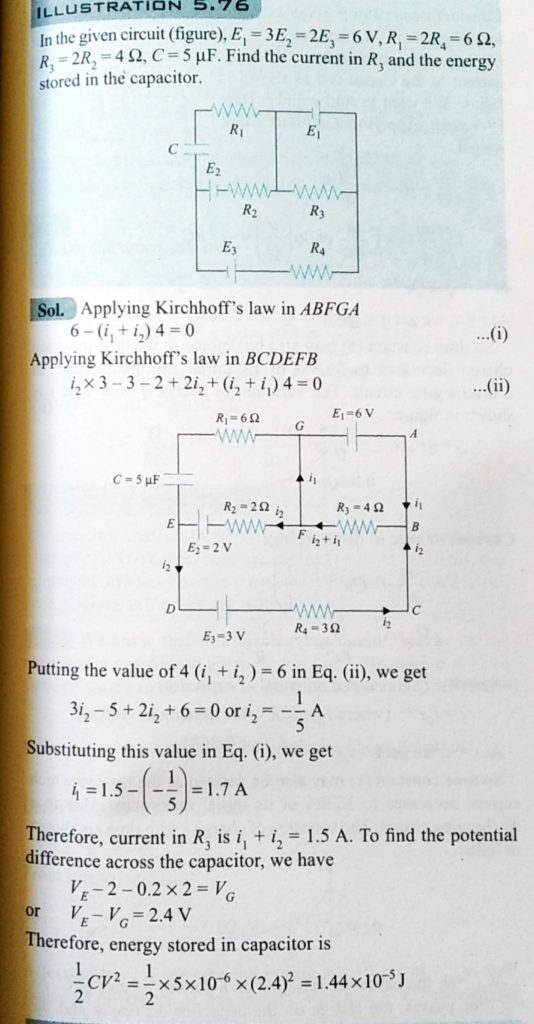

In the given circuit E1 = 3E2 = 2E3 = 6 volts R1=2R4=6Ω R3= 2R2=4Ω C=5μf. Find the current in R and the energy stored in the capacitor.

In the given circuit E1 = 3E2 = 2E3 = 6 volts R1=2R4=6Ω R3= 2R2=4Ω C=5μf. Find the current in R and the energy stored in the capacitor.
