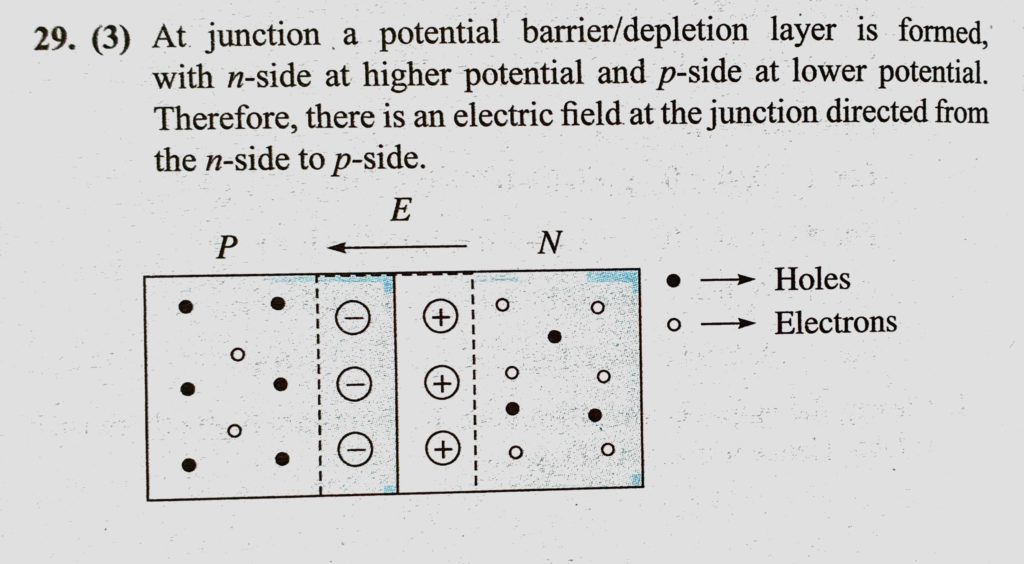

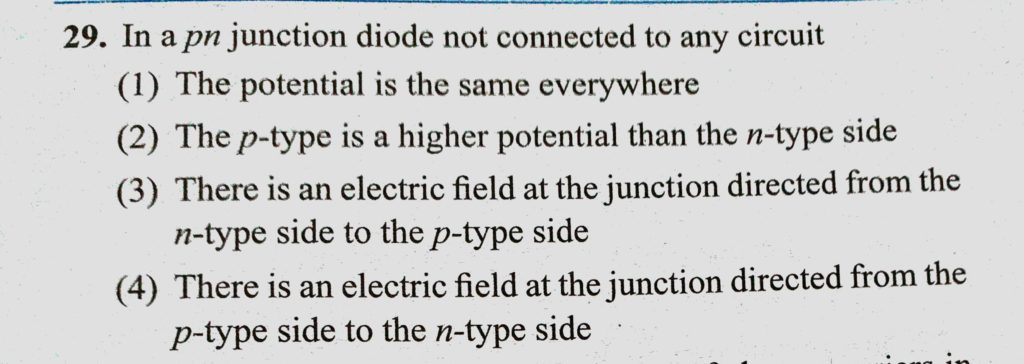

In a pn junction diode not connected to any circuit (1) The potential is the same everywhere (2) The p-type is a higher potential than the n-type side (3) There is an electric field at the junction directed from the n-type side to the p-type side.
