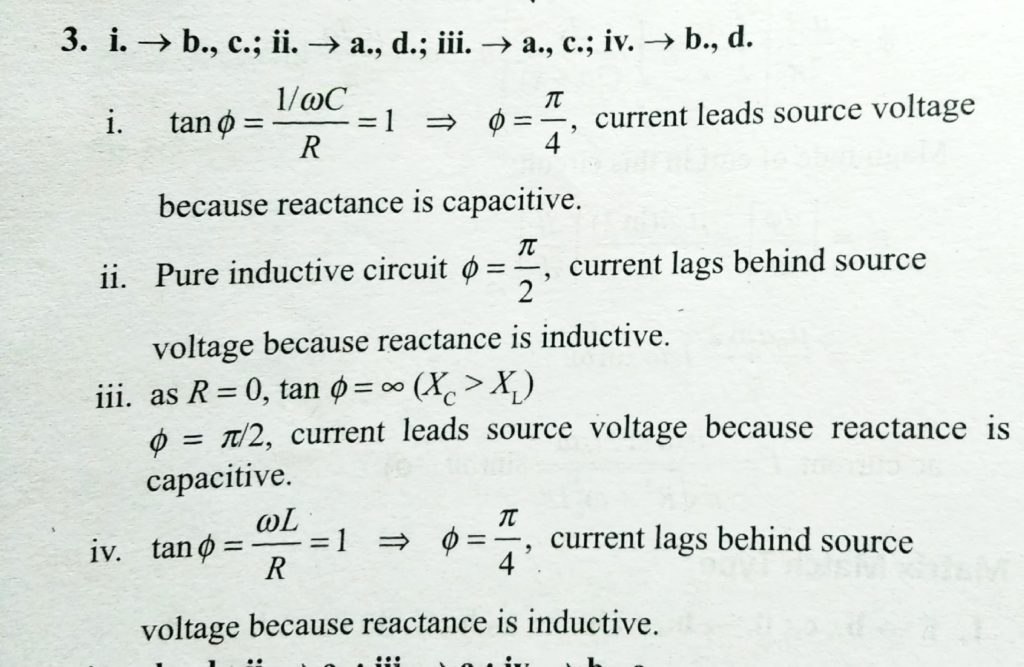

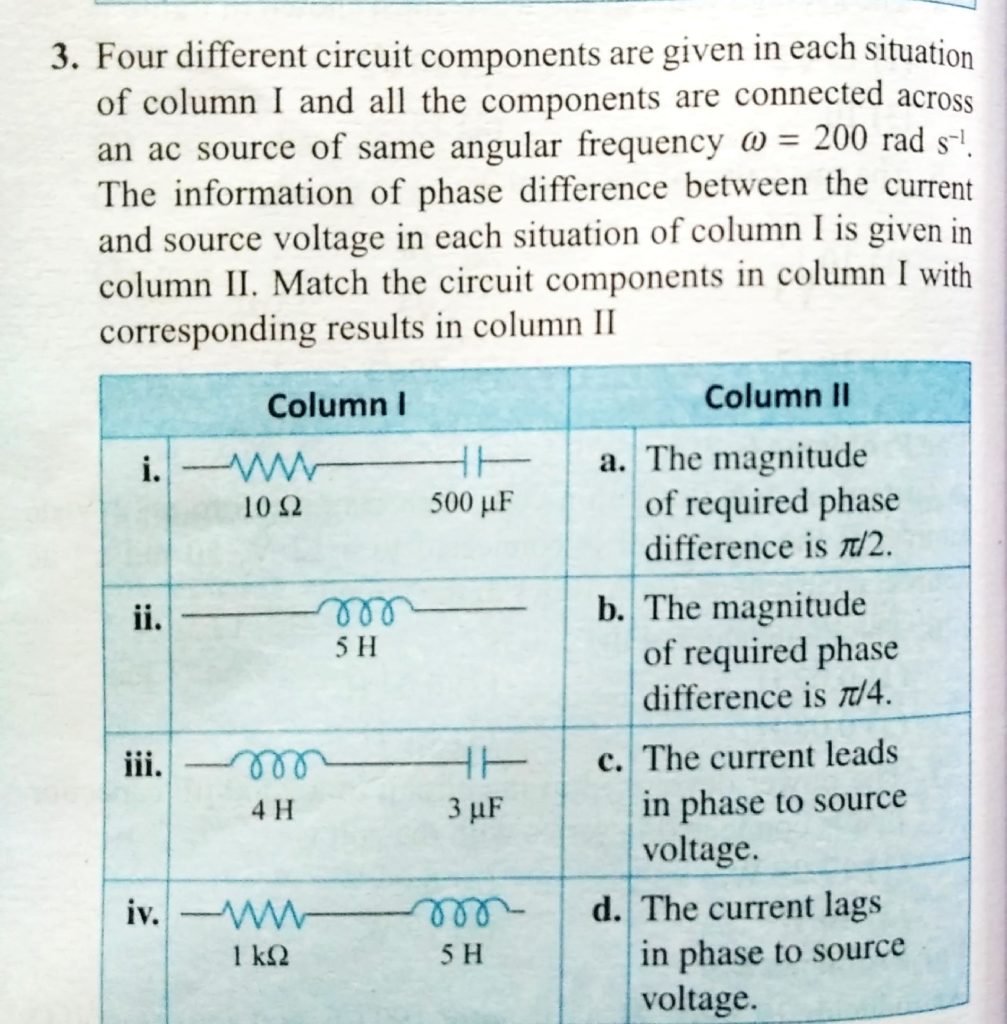

Four different circuit components are given in each situation of coulmn I nad all the componrents are connected across an ac source of same angular frequency omega = 200 rad/s. THe information of phase difference between the current and source voltage in each situation of column I is given in column II . Match the circuit components in column I with corresponding results in column II
