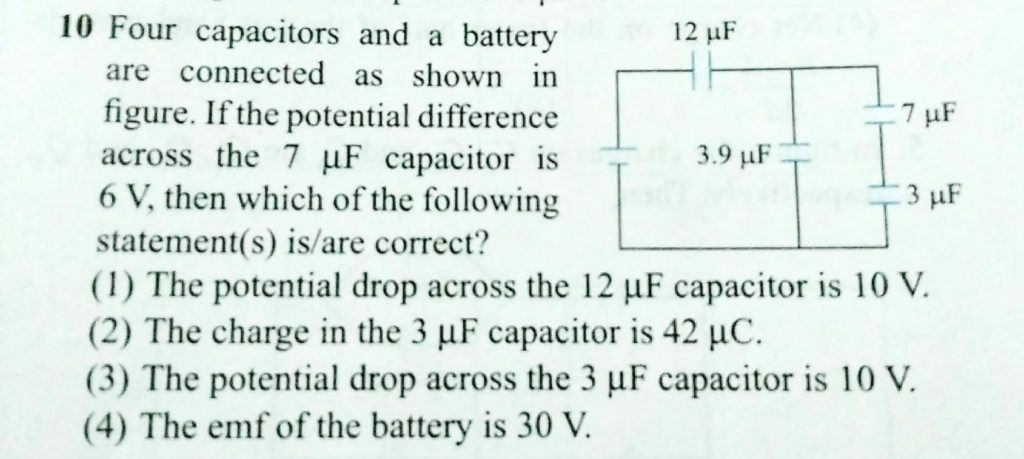

Four capacitors and a battery are connected as shown in figure. If the potential difference across the 7 muF capacitor is 6 V, then which of the following statements is /are correct ?

Four capacitors and a battery are connected as shown in figure. If the potential difference across the 7 muF capacitor is 6 V then which of the following statements is /are correct ?
