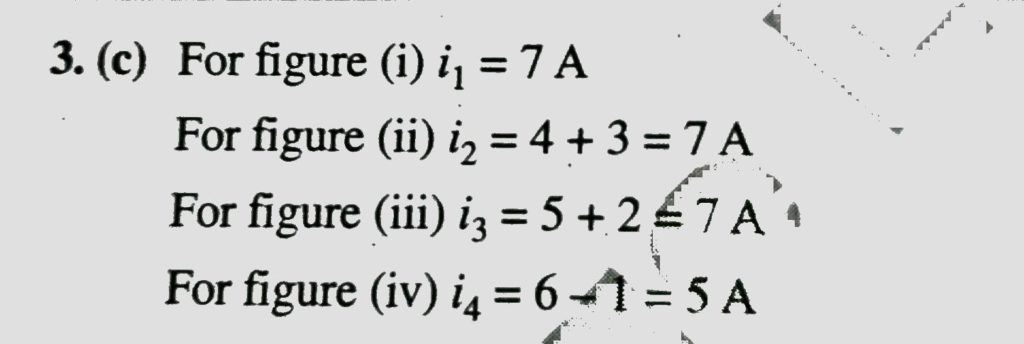

Following figures show four situations in which positive and negative charges move horizontally through a region and give the rate at which each charge moves. Rank the situations according to the effective current through the region greatest first.
