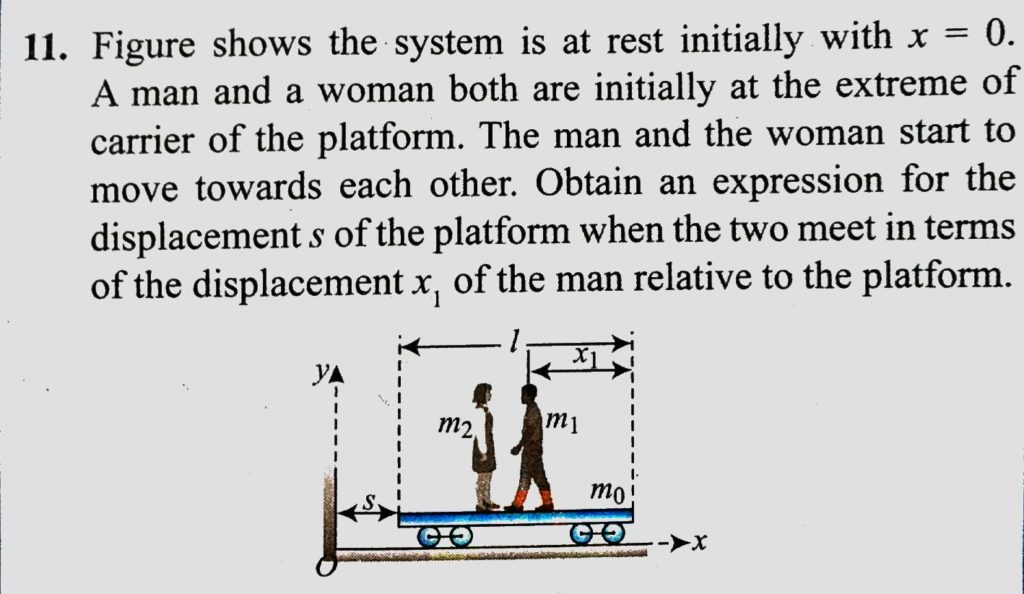

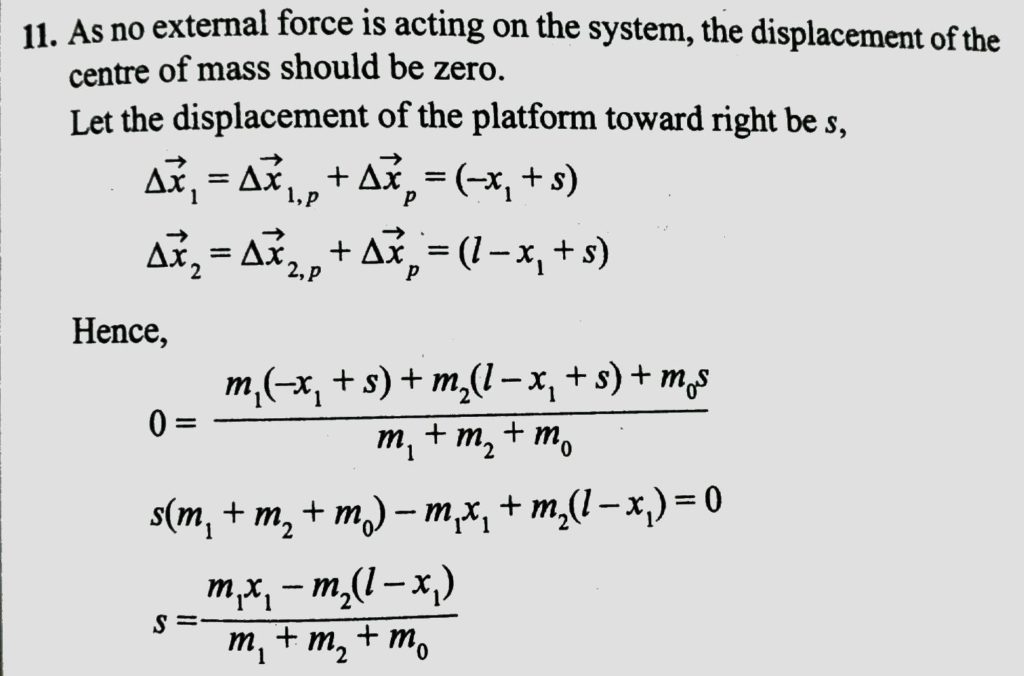

Figure shows the system is at rest initially with x = 0, A man and a woman both are initially at the extreme carrier of the platform. The man and the woman start to move towards each other. Obtain an expression for the displacement s of the platform when the two meet in terms of the displacement x1 of the man relative to the platform. `
