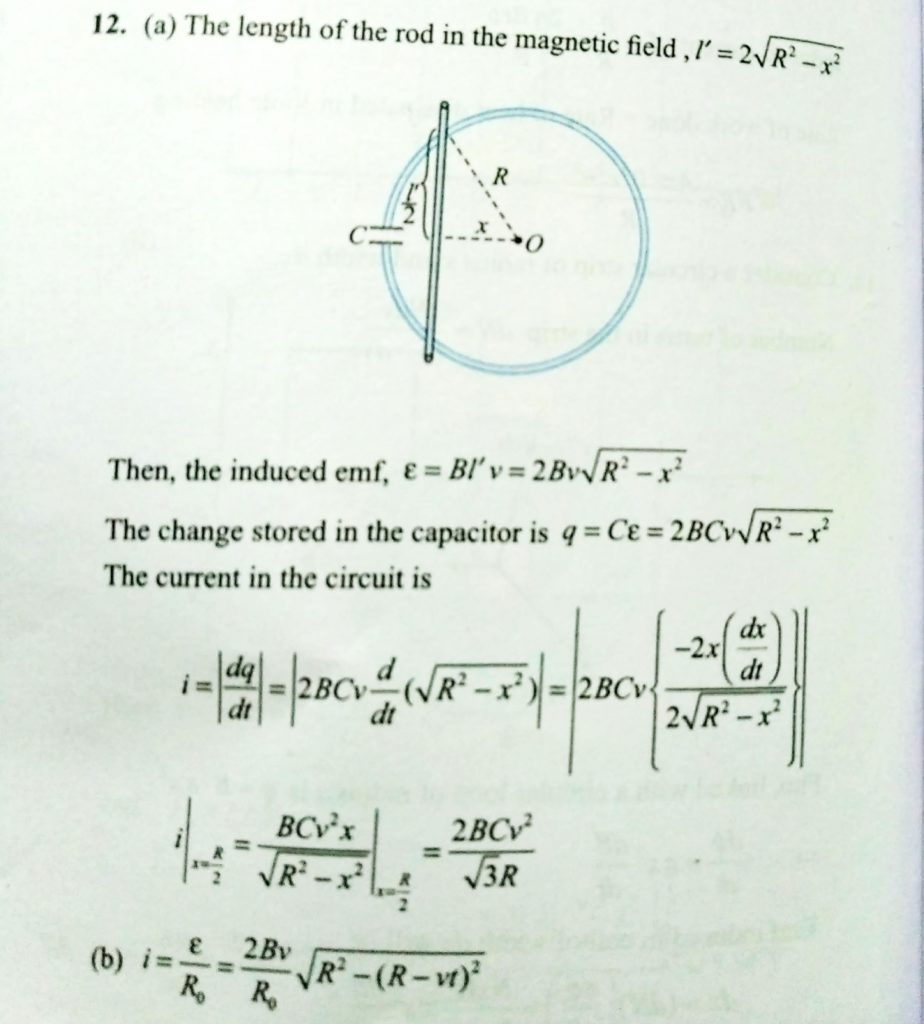

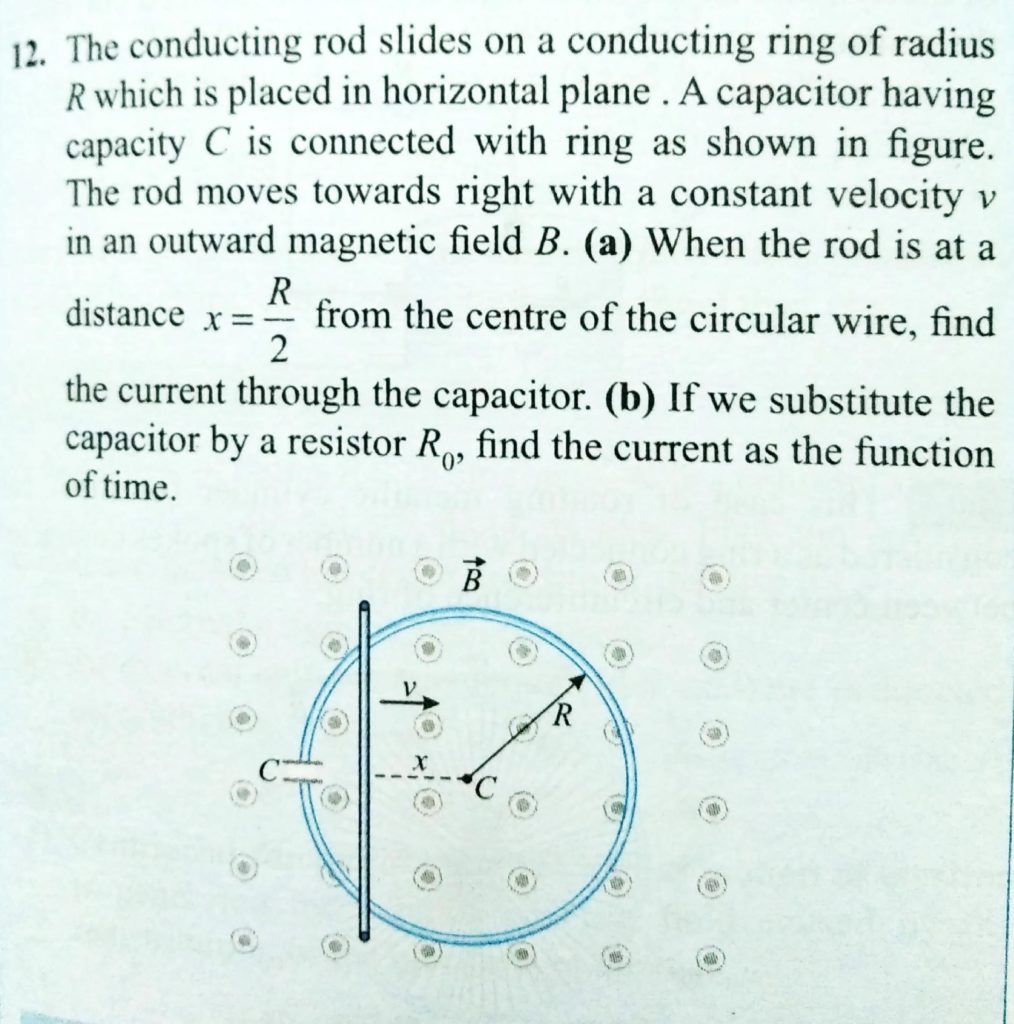

The conducting rod slides on a conducting ring of radius R which is placed in horizontal plane. a capacitor having capacity C is connected with ring as shown in figure. The rod moves towards right with a constant velocity v in an outward magnetic field B.
