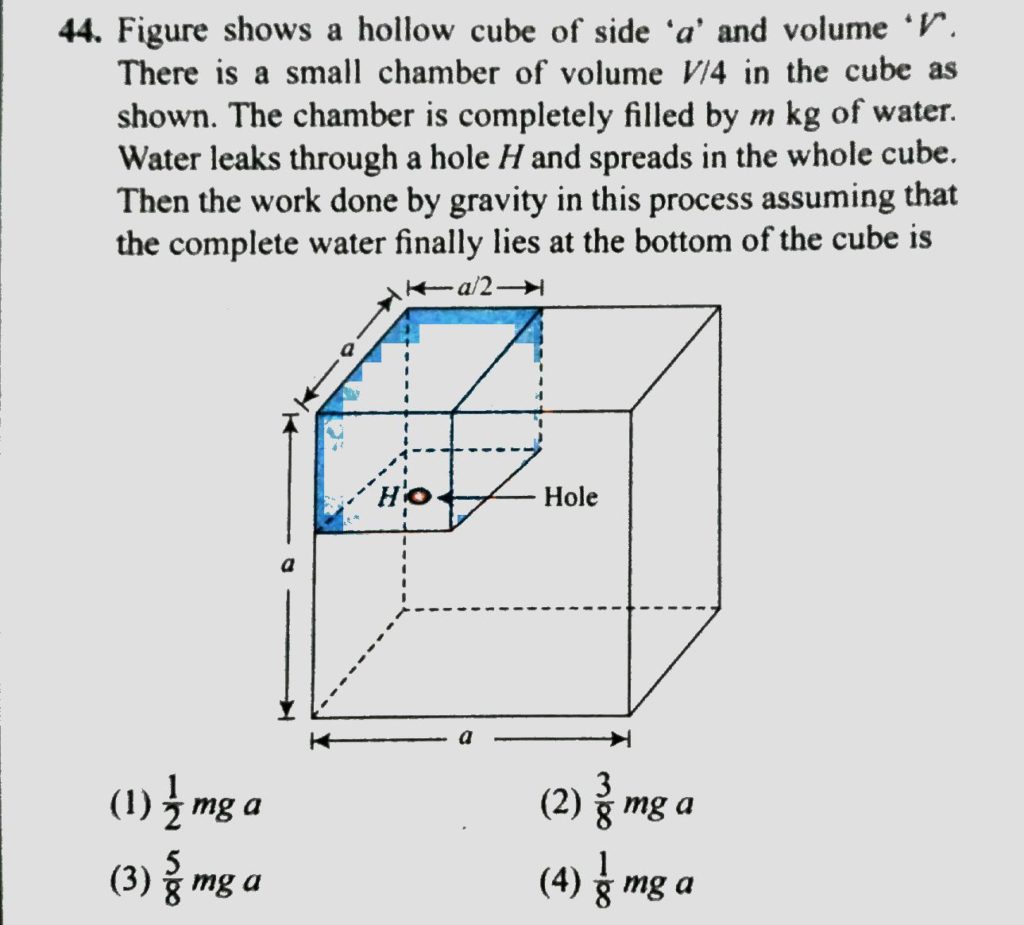

Figure shows a hollow cube of side ‘a’ and volume ‘V’. There is a small chamber of volume V/4 in the cube as shown. The chamber is completely filled by in kg of water. Water leaks through a hole H and spreads in the whole cube. Then the work done by gravity in this process assuming that the complete water finally lies at the bottom of the cube is
