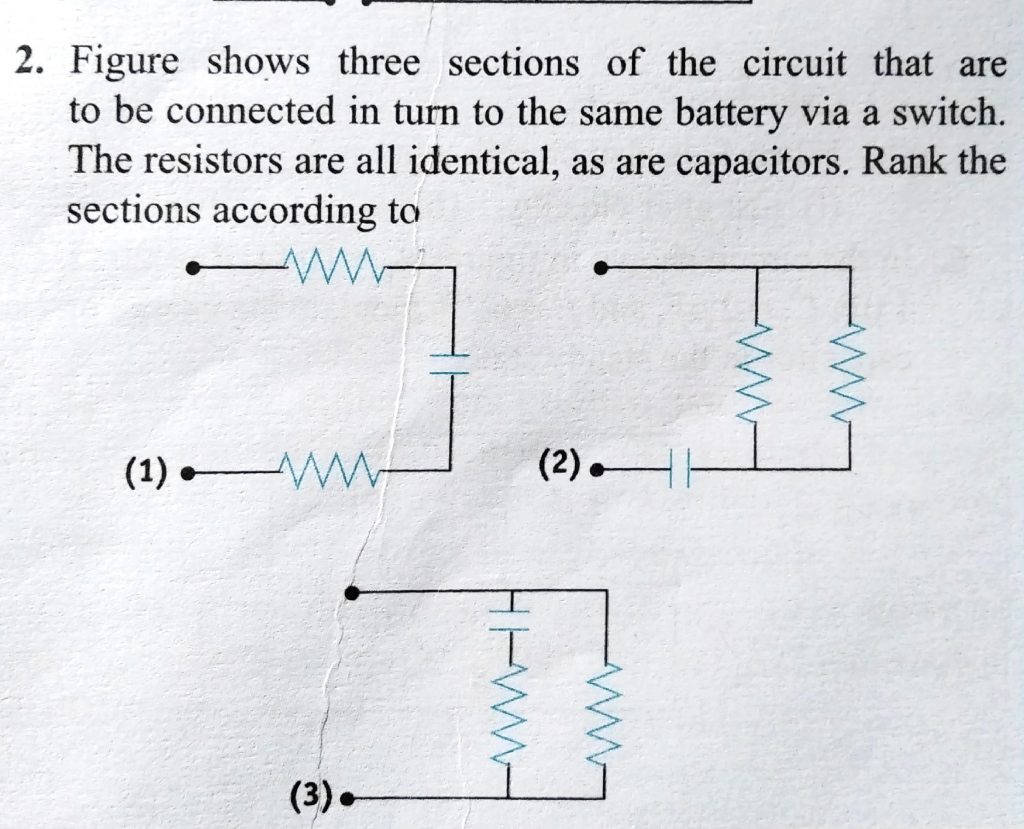

Figure Shown three sections of the circuit that are to be connecte in turn to the same battery via a switch. The resistors are all identical, as are capactiors. Rank the sections according to a. the final (equilibrium) charge on the capacitor……… b. the time required for the capacitor to reah 50% of its final charge, greatest first…….

as are capactiors. Rank the sections according to a. the final (equilibrium) charge on the capacitor......... b. the time required for the capacitor to reah 50% of its final charge Figure Shown three sections of the circuit that are to be connecte in turn to the same battery via a switch. The resistors are all identical greatest first.
