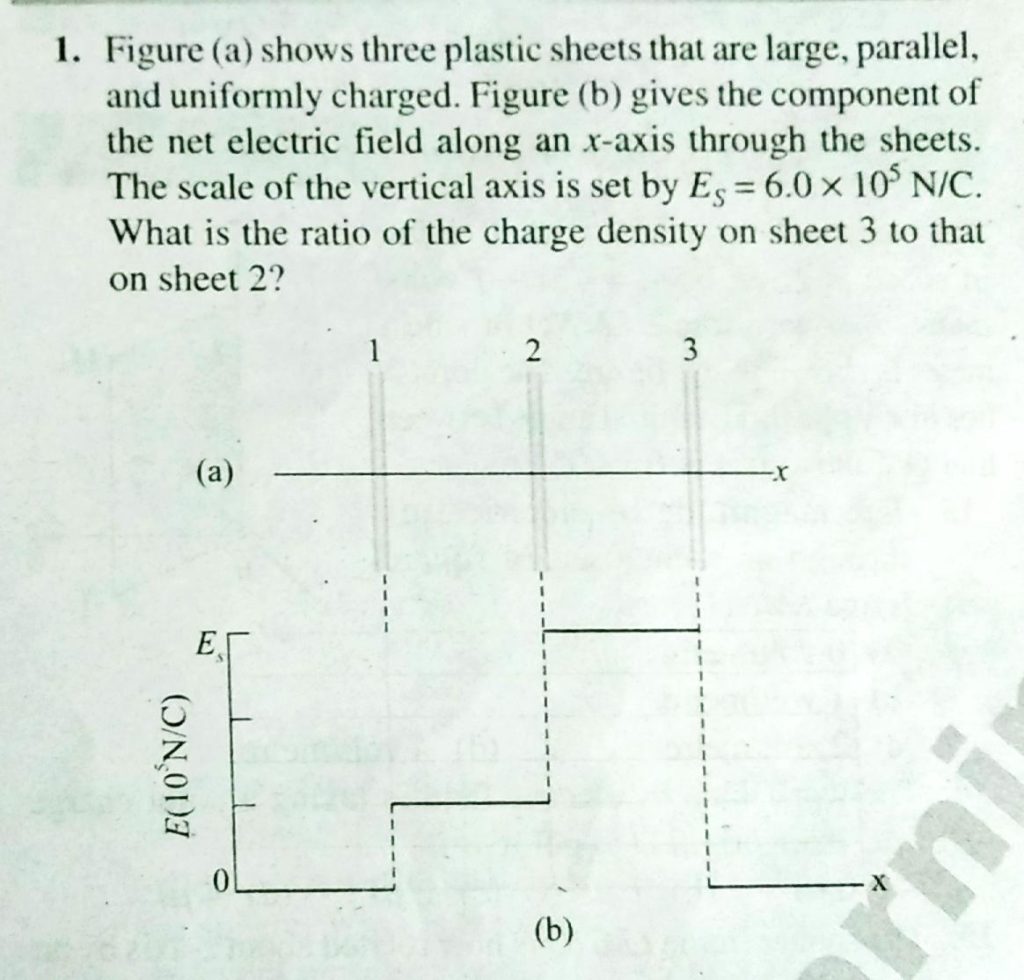

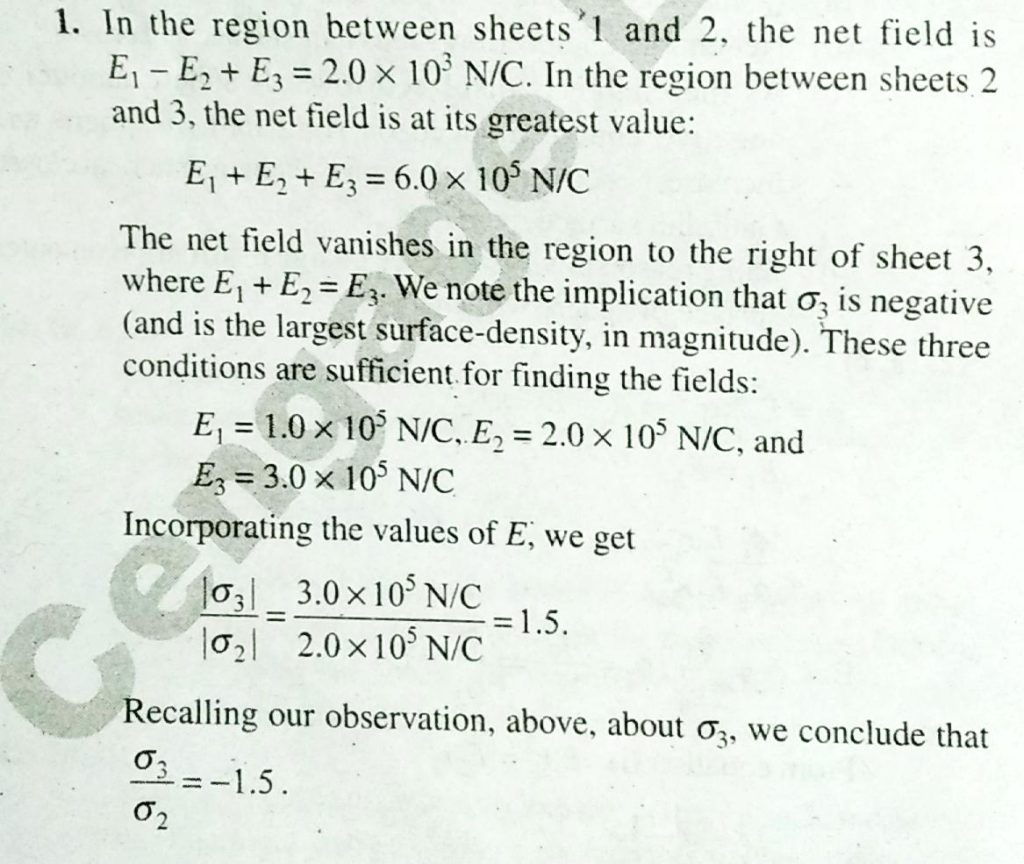

Figure (a) shows three sheets that are large, parallel and uniformly charged. Figure (b) gives the component of the net electric field along and x-axis through the sheets. The scale of the vertical axis is set by Es = 6.0 × 10^5 N/C what is the ratio of the charge density on sheet 3 to that on sheet 2?

E→=E0xiˆ. Consider an imaginary cubical volume of edge a with its sides parallel to the axes of coordinates. The charge inside this volume will be Figure (a) shows three sheets that are large In a region of space the electric field in the x-direction and proportional to xi.e.
