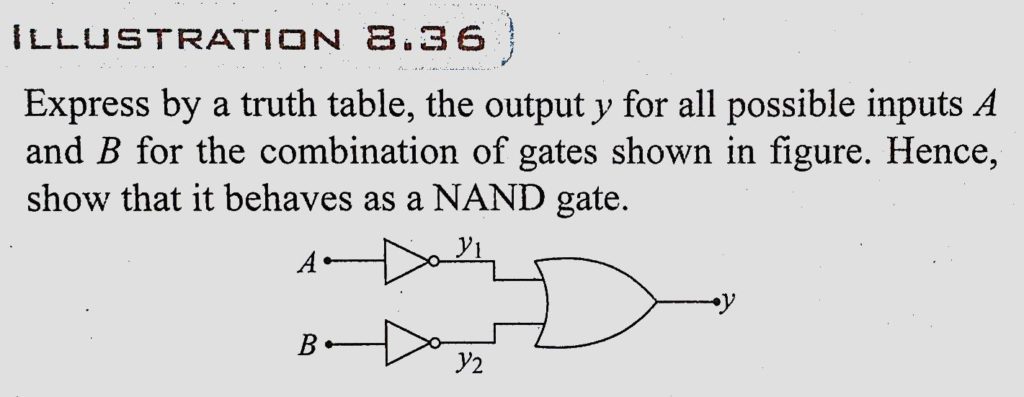

Express by a truth table, the output y for all possible inputs A and B for the combination of gates shown in figure. Hence, show that it behaves as a NAND gate.

Express by a truth table show that it behaves as a NAND gate. the output y for all possible inputs A and B for the combination of gates shown in figure. Hence
