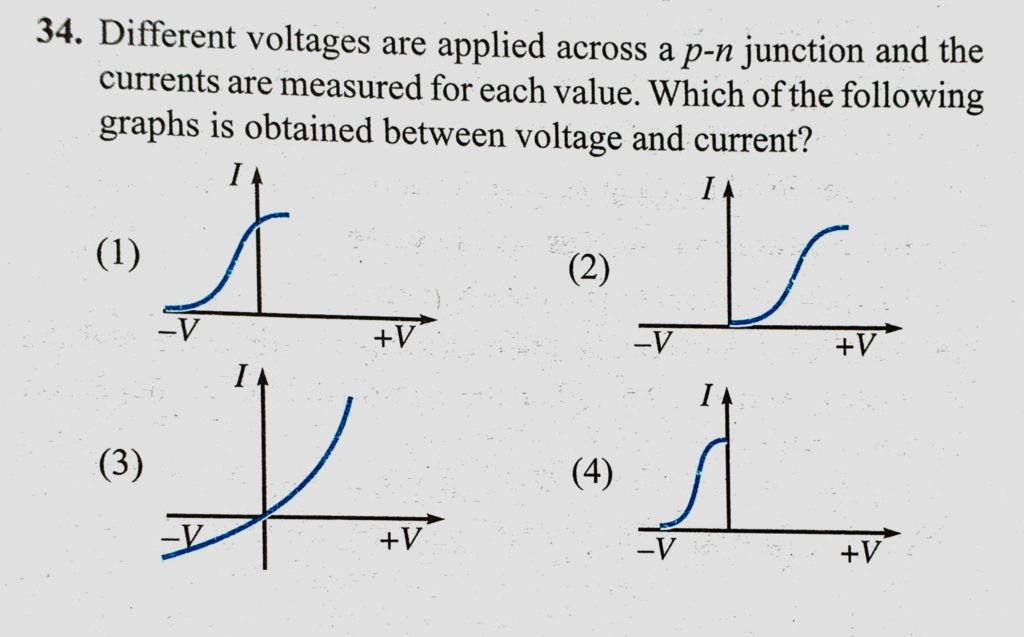

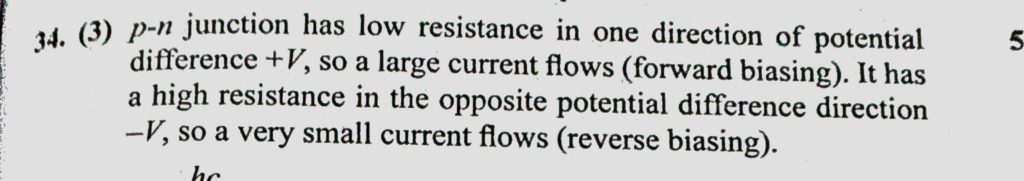

Different voltages are applied across a p-n junction and the currents are measured for each value. Which of the following graphs is obtained between voltage and current ?

Different voltages are applied across a p-n junction and the currents are measured for each value. Which of the following graphs is obtained between voltage and current ?
