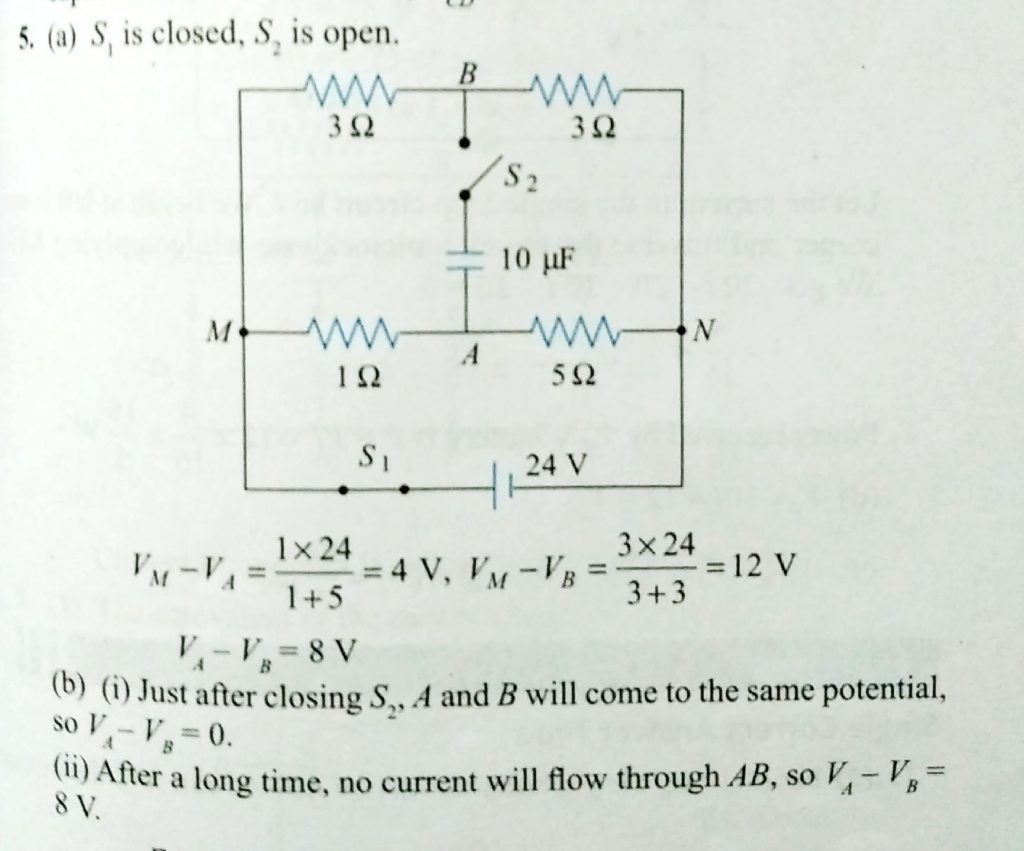

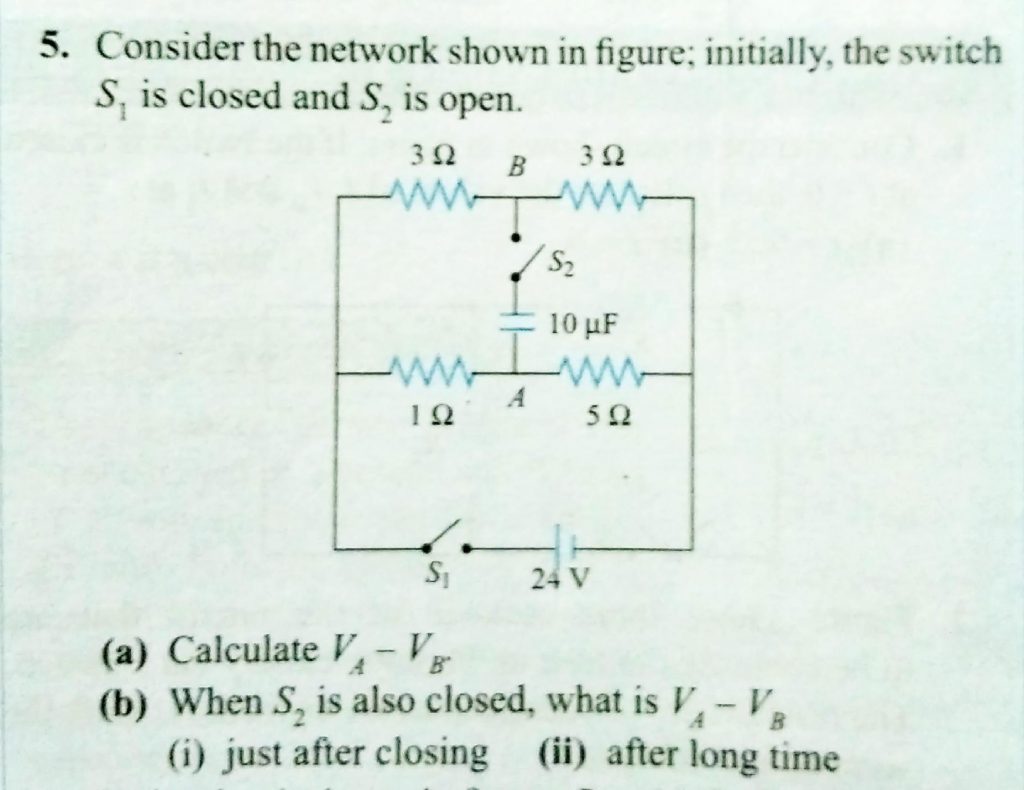

Consider the network shown in figure: initially , the switch S1 is closed and S2 is open. (a) calculate Va – Vb (b) when s2 is also closed , what is Va – Vb ( i) just after closing (ii) after long time

Consider the network shown in figure: initially the switch S1 is closed and S2 is open. (a) calculate Va - Vb (b) when s2 is also closed what is Va - Vb ( i) just after closing (ii) after long time
