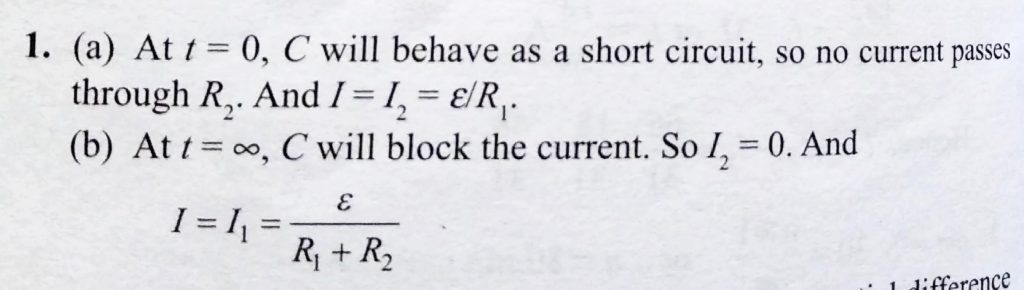

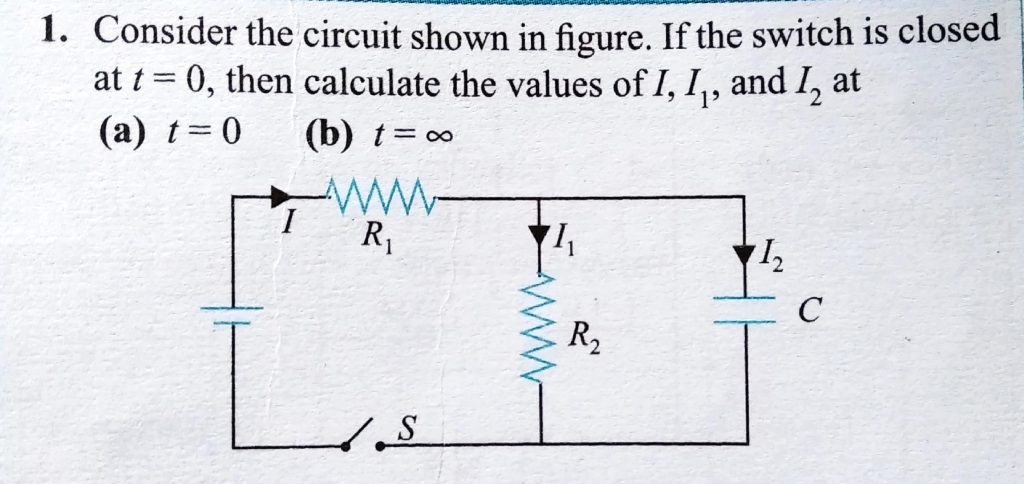

Consider the circuit shown in the figure. If the switch is closed at t = 0 , then calculate the values of I, I1 and I2 at ( a) t = 0 (b) t = infinity

Consider the circuit shown in the figure. If the switch is closed at t = 0 I1 and I2 at ( a) t = 0 (b) t = infinity then calculate the values of I
