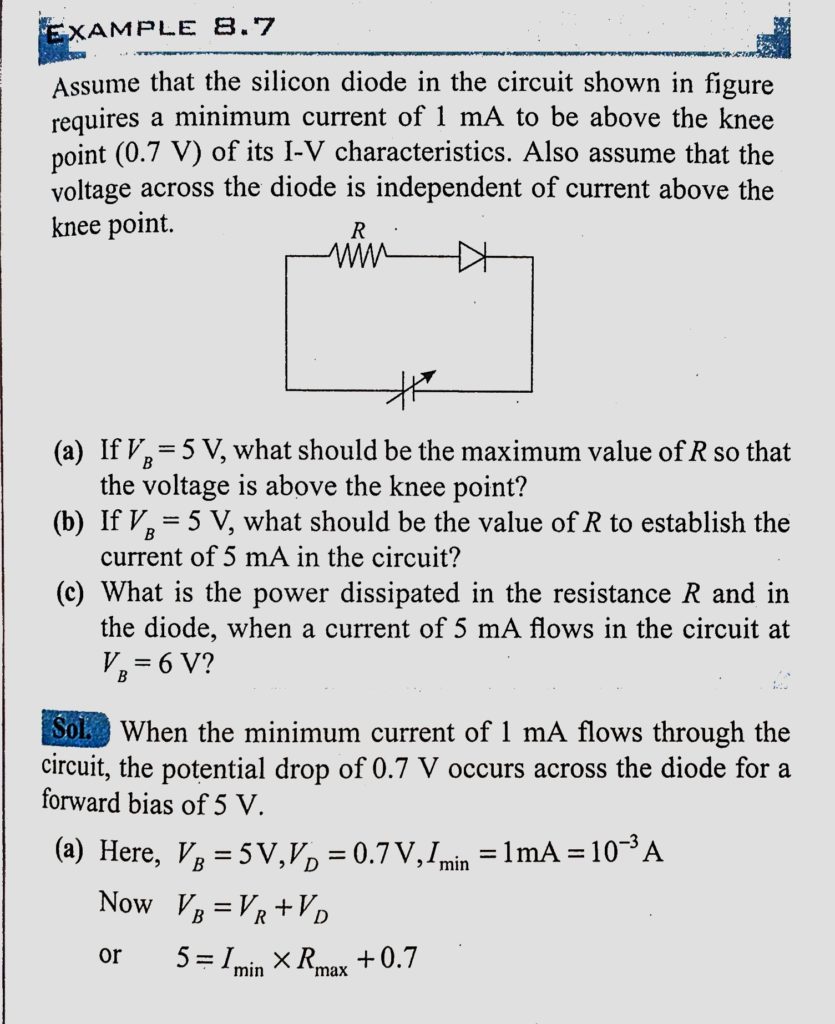

Assume that the silicon diode in the circuit shown in figure requires a minimum current of 1 mA to be above the knee point (0.7 V) of its I-V characteristics. Also assume that the voltage across

Assume that the silicon diode in the circuit shown in figure requires a minimum current of 1 mA to be above the knee point (0.7 V) of its I-V characteristics. Also assume that the voltage across
