Sahay Sir > Question Answers > Uncategorised (JEE Advanced Physics by BM Sharma + GMP Solutions) > An object is placed between a plane mirror and a concave mirror of focal length 15 cm as shown in the figure. Find the positions of the images after two reflections.An object is placed between a plane mirror and a concave mirror of focal length 15 cm as shown in the figure. Find the positions of the images after two reflections.

An object is placed between a plane mirror and a concave mirror of focal length 15 cm as shown in the figure. Find the positions of the images after two reflections.An object is placed between a plane mirror and a concave mirror of focal length 15 cm as shown in the figure. Find the positions of the images after two reflections.

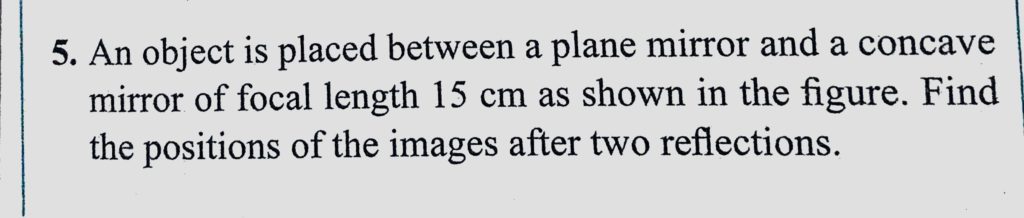

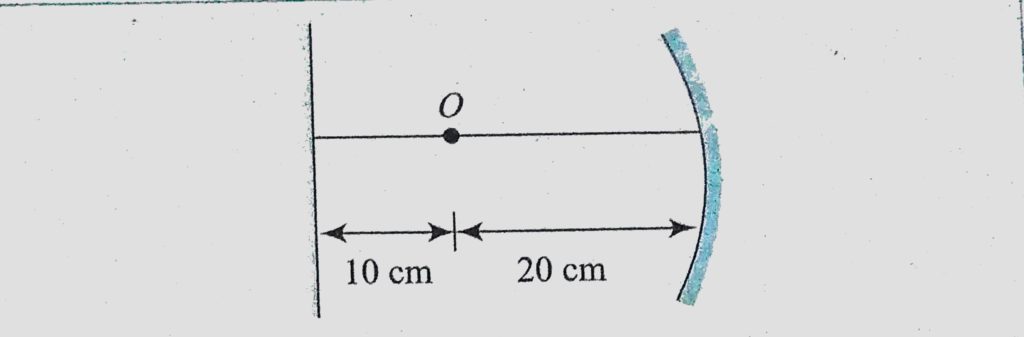

An object is placed between a plane mirror and a concave mirror of focal length 15 cm as shown in the figure. Find the positions of the images after two reflections.
