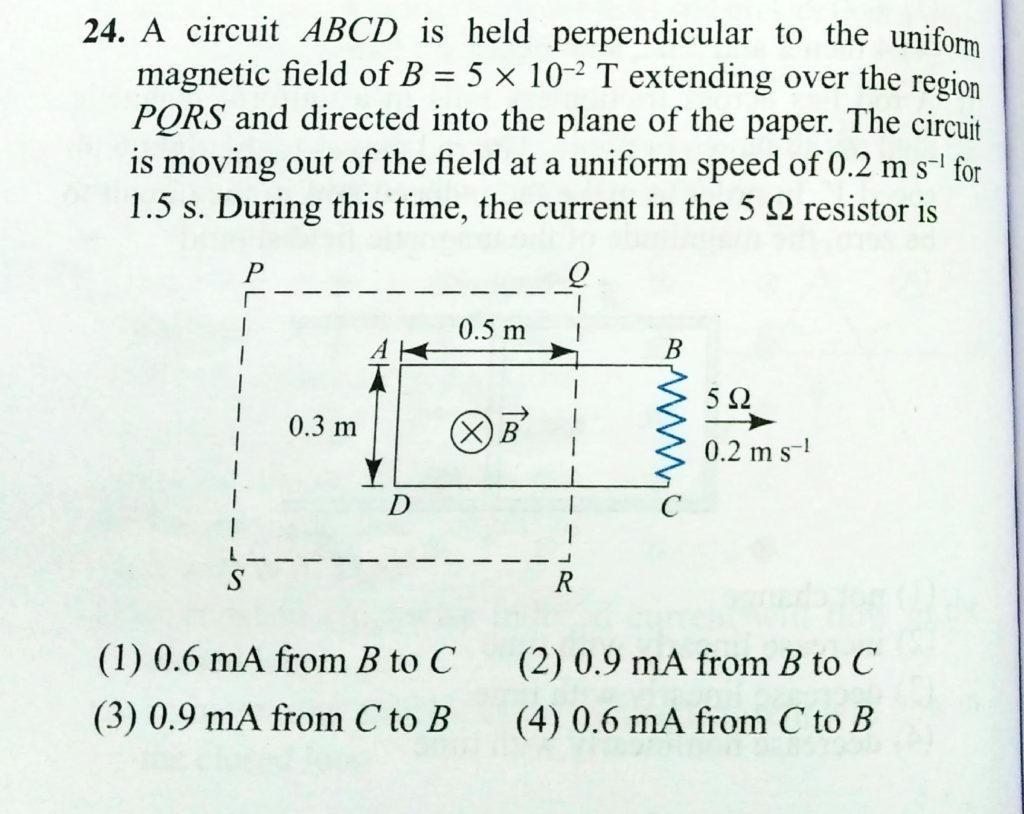

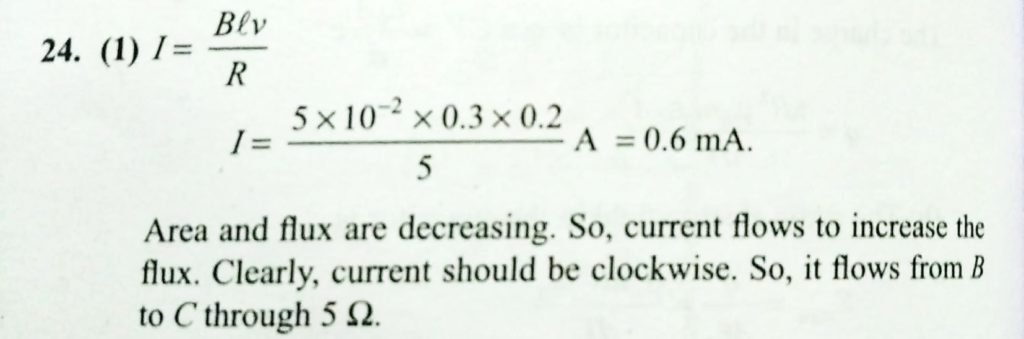

A circuit ABCD is held perpendicular to the uniform magnetic field of B = 5 × 10^−2 T extending over the region PQRS and directed into the plane of the paper. The cicuit is moving out of the field at a uinform speed of 0.2 m/s for 1.5 s. During this time, the current in the 5 Ω resistor is
