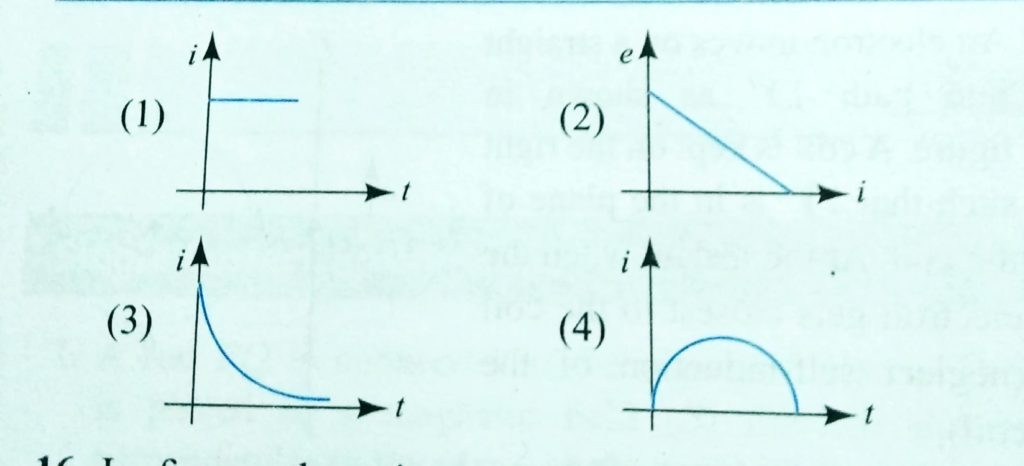

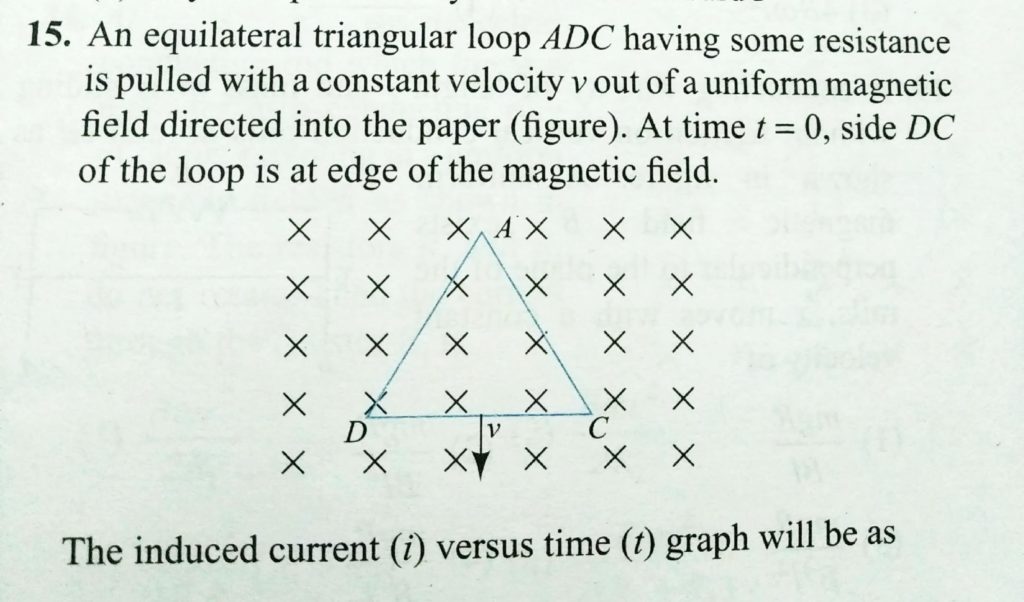

An equilateral triangular loop ADC having some resistance is pulled with a constant velocity v out of a uniform magnetic field directed into the paper (figure). At time t=0, side DC of the loop is at edge of the magnetic field. The induced current (i) versus time (t) graph will be as

An equilateral triangular loop ADC having some resistance is pulled with a constant velocity v out of a uniform magnetic field directed into the paper (figure). At time t=0 side DC of the loop is at edge of the magnetic field. The induced current (i) versus time (t) graph will be as
