Sahay Sir > Question Answers > Uncategorised (JEE Advanced Physics by BM Sharma + GMP Solutions) > Two identical moving coil galvanometers have 10 Ω resistance and full scale deflection at 2 μA current. One of them is converted into a voltmeter of 100 mV full scale reading and the other into an Ammeter of 1 mA full scale current using appropriate resistors. These are then used to measure the voltage and current in the Ohm’s law experiment with R = 1000 Ω resistor by using an ideal cell. Which of the following statements is/are correct?

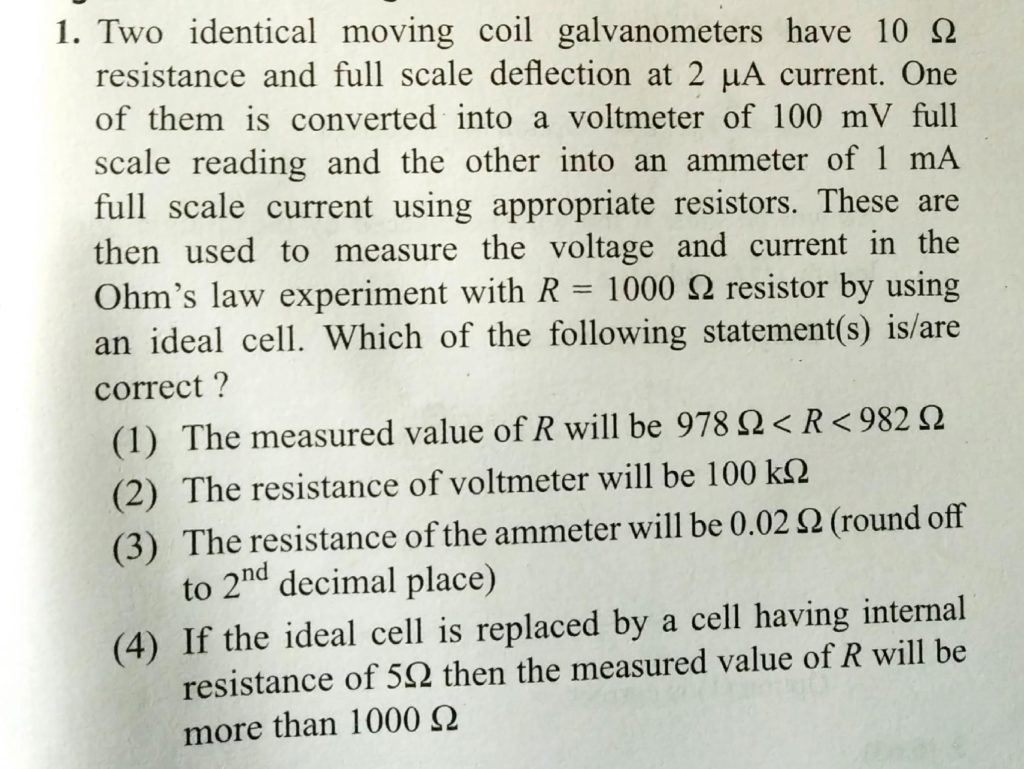

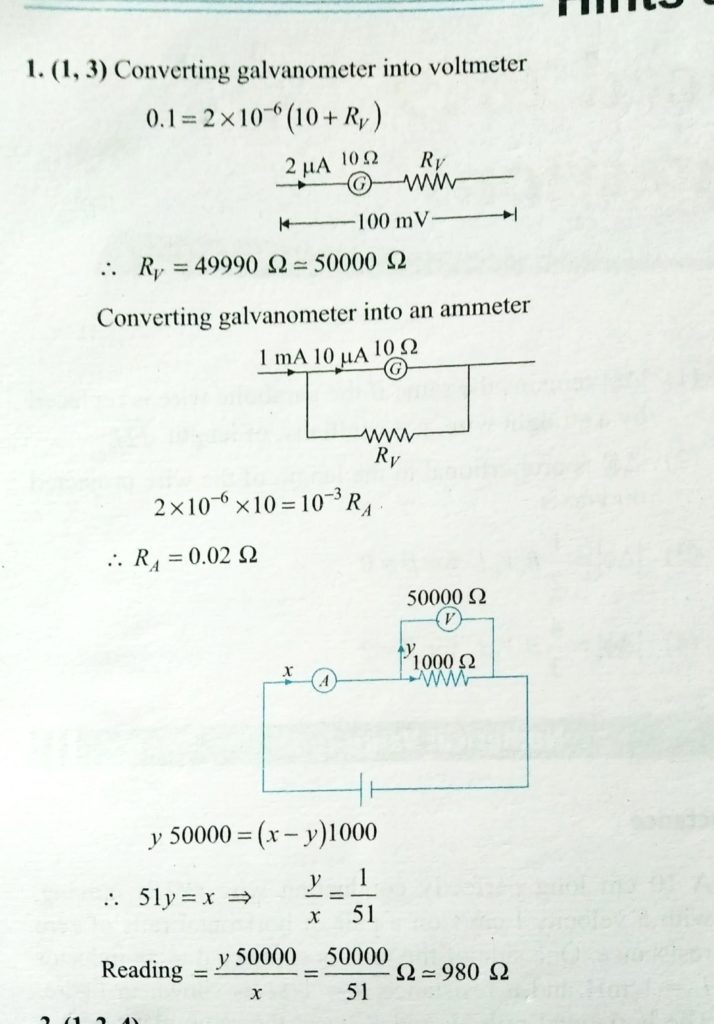

Two identical moving coil galvanometers have 10 Ω resistance and full scale deflection at 2 μA current. One of them is converted into a voltmeter of 100 mV full scale reading and the other into an Ammeter of 1 mA full scale current using appropriate resistors. These are then used to measure the voltage and current in the Ohm’s law experiment with R = 1000 Ω resistor by using an ideal cell. Which of the following statements is/are correct?

An electromgnetic wave in vaccum has the electric and magnetic field E and B which are always perpendicular to each other. The direction of polarization is given by X and that of wave propagation by K. Then
