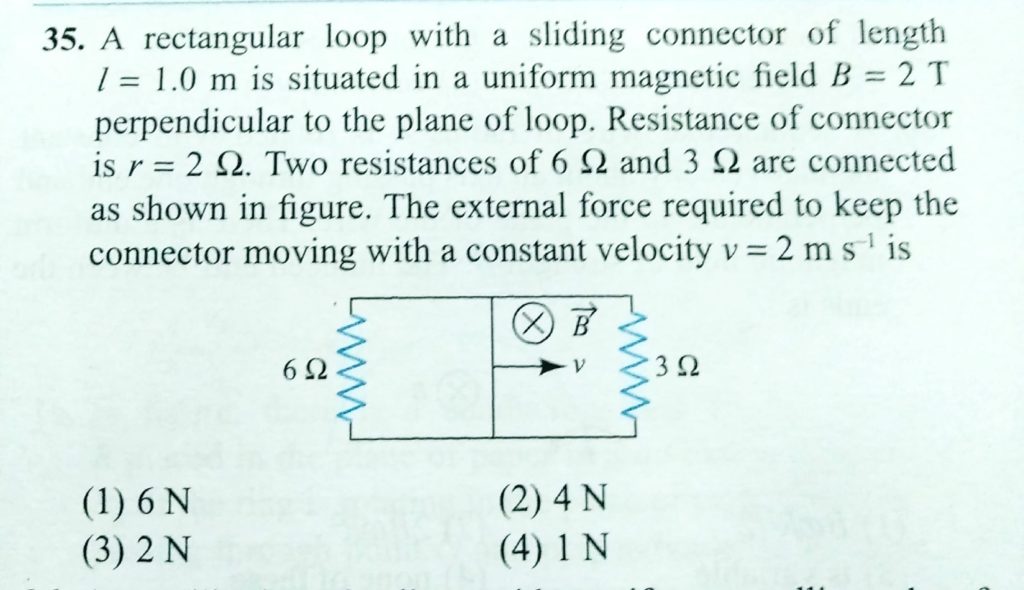

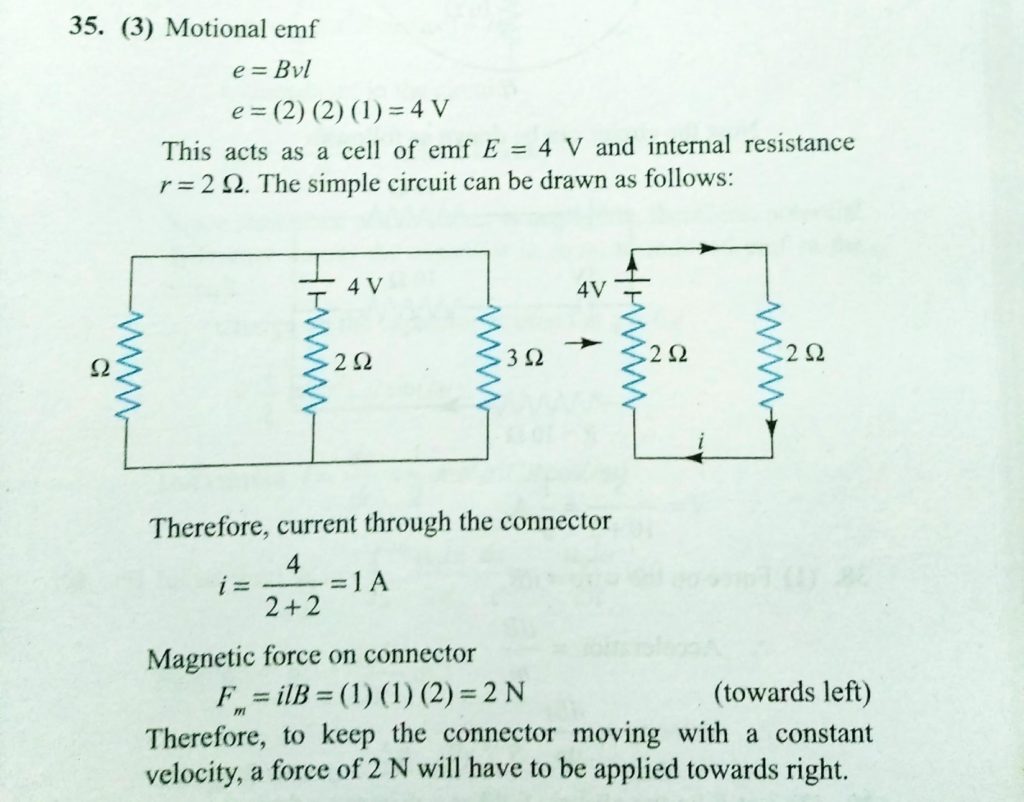

A rectangle loop with a sliding connector of length l = 1.0 m is situated in a uniform magnetic field B = 2 T perpendicular to the plane of loop. Resistance of connector is r = 2 Ω. Two resistance of 6Ω and 3Ω are connected as shown in figure. the external force required to keep the connector moving with a constant velocity v = 2 m/s is
