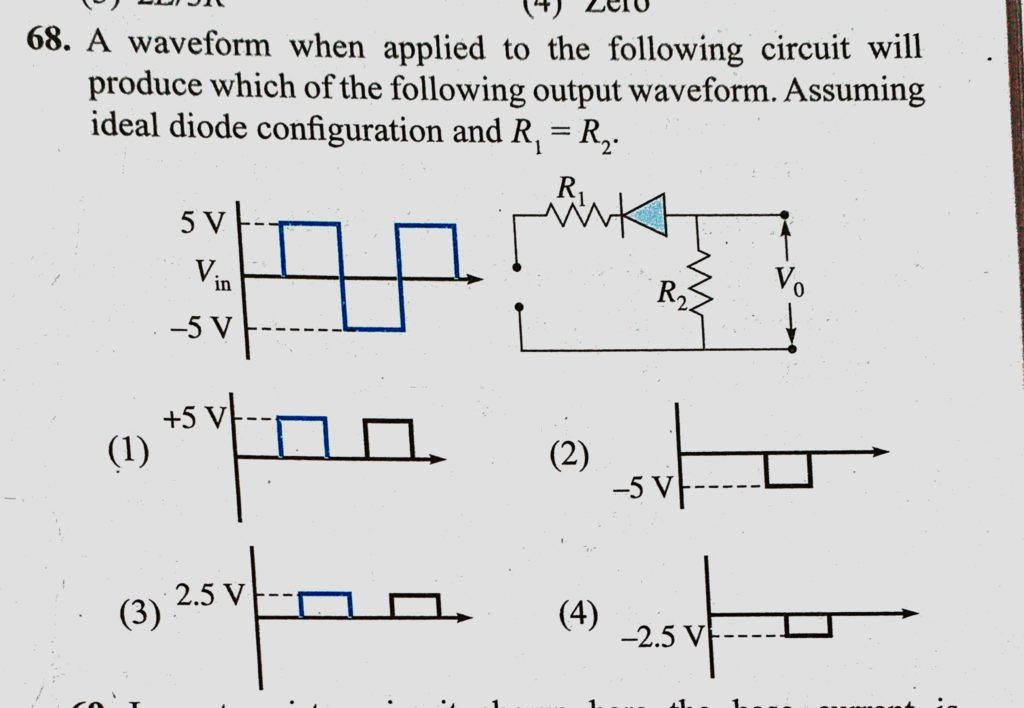

A waveform when applied to the following circuit will produce which of the following output waveform. Assuming ideal diode configuration and R1 = R2.

A waveform when applied to the following circuit will produce which of the following output waveform. Assuming ideal diode configuration and R1 = R2.
