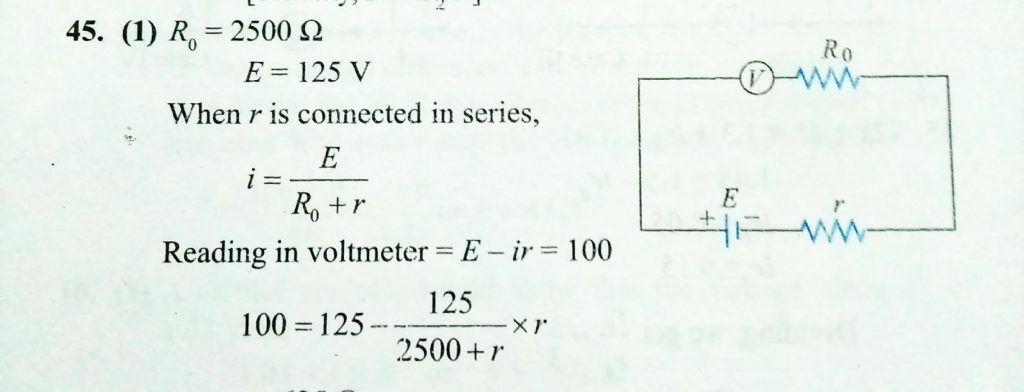

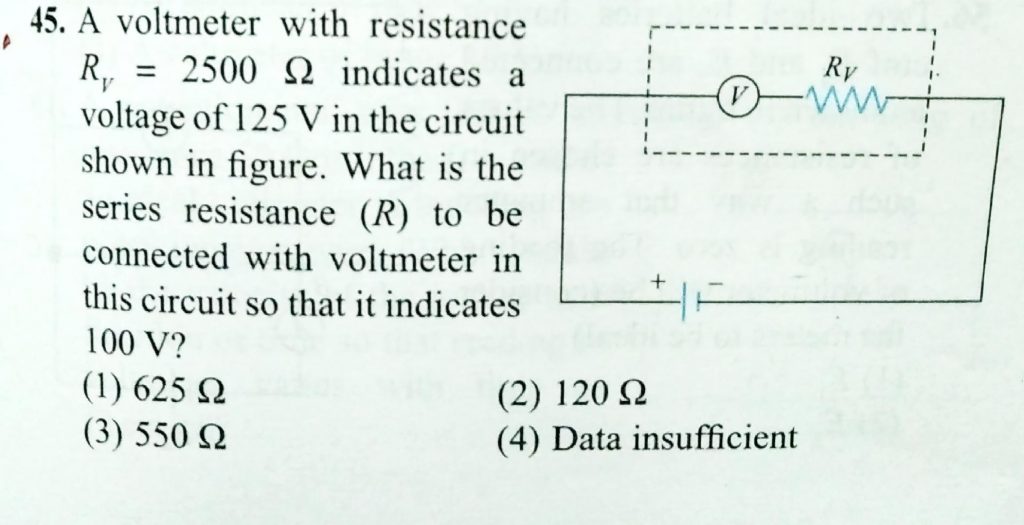

A voltmeter with resistance R v ​= 2500 Ω indicates a voltage of 125 V in the circuit shown in Fig. A2.18. What is the series resistance (R) to be connected with voltmeter in this circuit so that it indicates 100 V?
