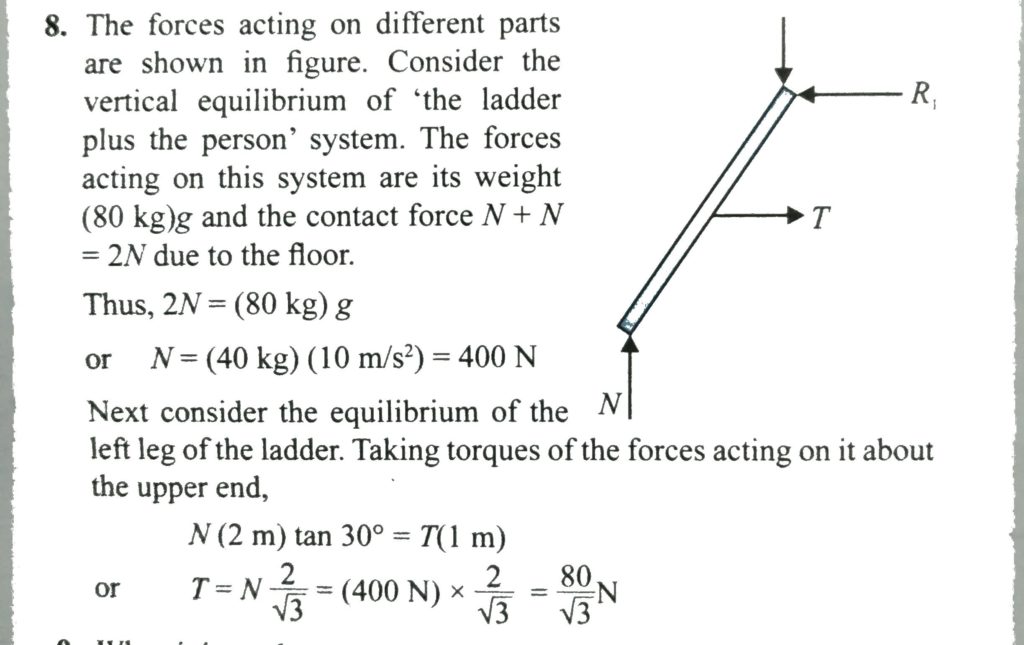

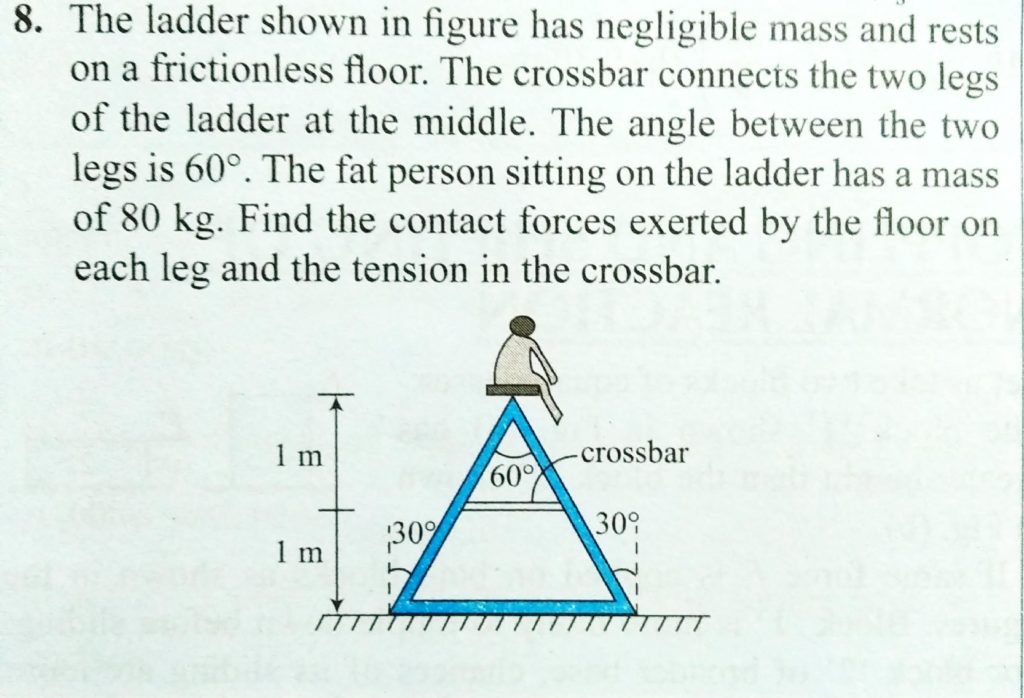

The ladder shown in figure has negligible mass and rests on a frictionless floor. The crossbar connects the two legs of the ladder at the middle. The angle between the two legs is 600. The fat person sitting on the ladder thas a mas of 80 kg. Find the contact force exerted by the floor on each leg and the tension in the cross bar.

A uniform circular disc has a sector of angle 90∘ removed from it. Mass of the remaining disc is M. Write the moment of inertia of the remaining disc about the axis xx shown in figure (Radius is R)
