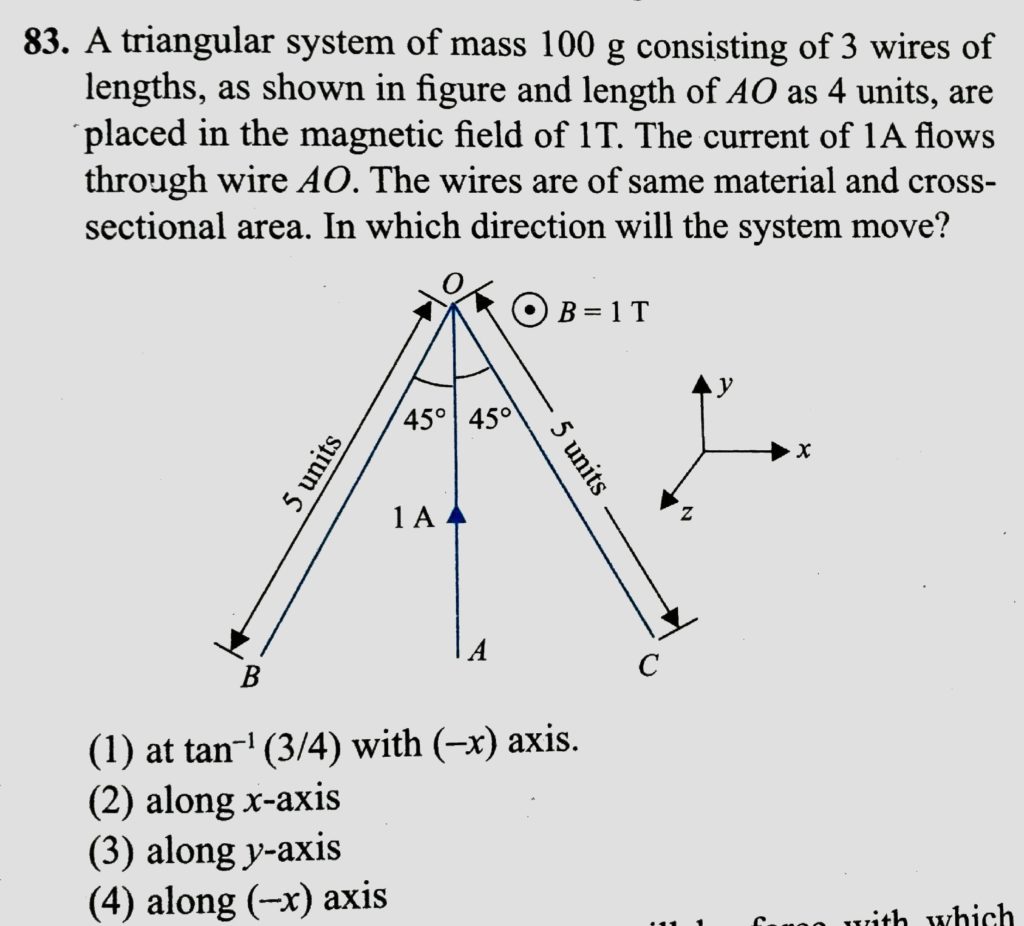

A triangular system of mass 100 g consisting of 3 wires of length , as shown in figure and length of AO as 4 units , are placced in the magnetic field of 1 T. Th ecurrent of 1A flows through wire AO. The wires are of same material and cross sectional area. In which direction will the system move ?

A triangular system of mass 100 g consisting of 3 wires of length are placced in the magnetic field of 1 T. Th ecurrent of 1A flows through wire AO. The wires are of same material and cross sectional area. In which direction will the system move ? as shown in figure and length of AO as 4 units
