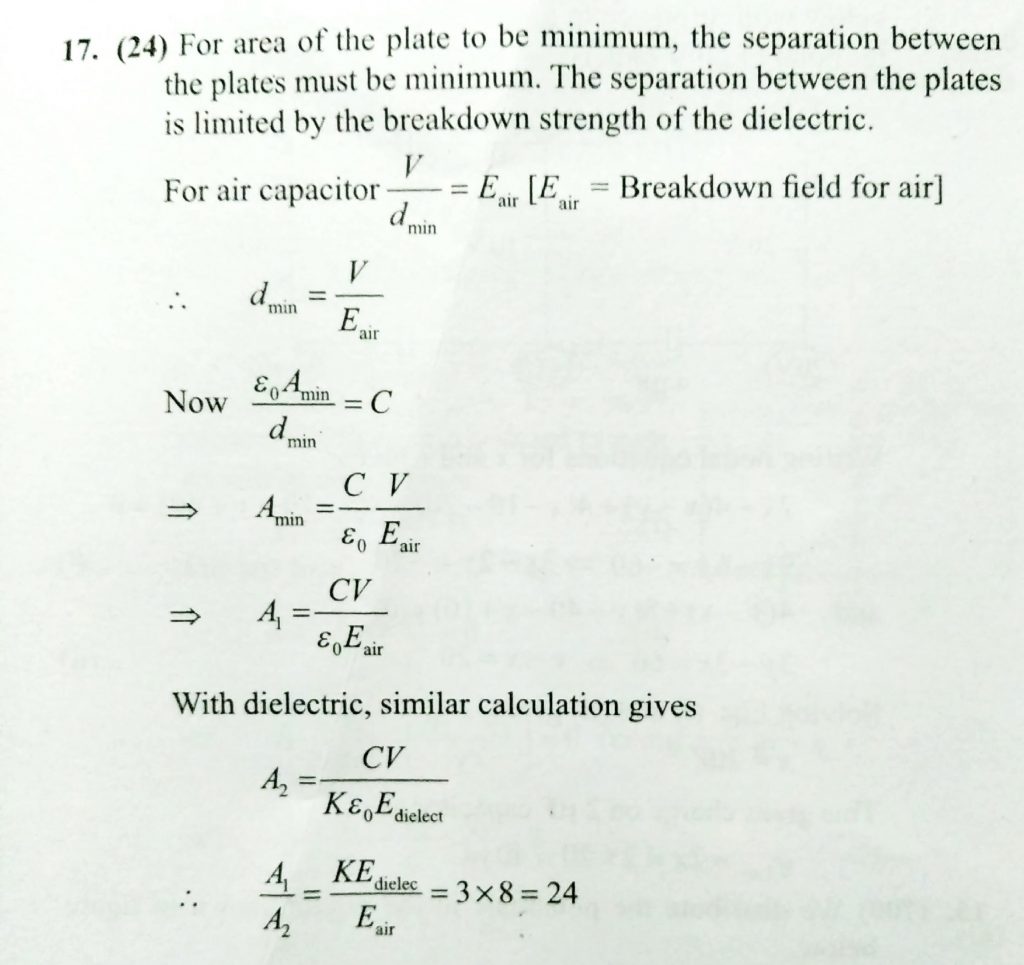

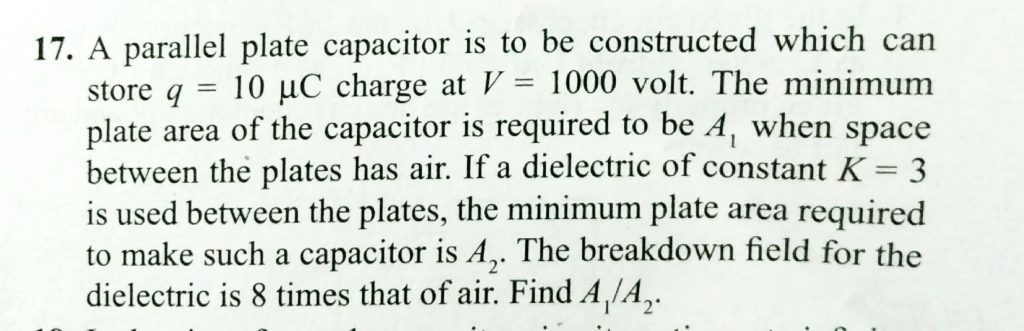

A parallel plate capacitor is to be constructed which can store q = 10 μC charge at V= 1000 volt. The minimum plate area of the capacitor is required to be A1 when space between the plates has air. If a dielectric of constant K=3 is used between the plates, the minimum plate area required to make such a capacitor is A2. The breakdown field for the dielectric is 8 times that of air. Find A1/A2

Find the ratio of the magnitudes of the potential difference between the points A and B that between E and F of the circuit shown in figure.
