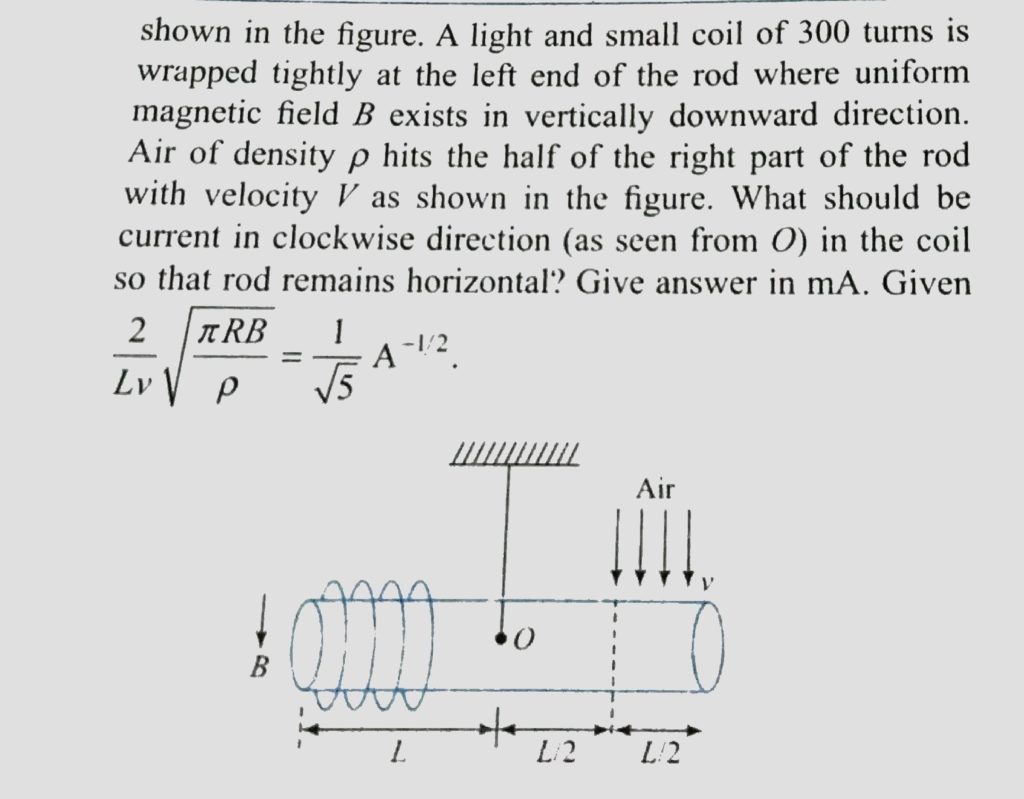

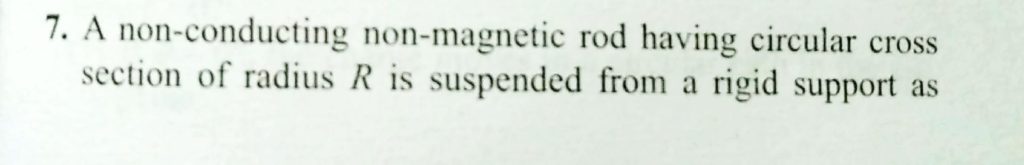

A non-conducting rod having circular cross section of radius R is suspended from a rigid support as shown in fig. A light and small coil of 300turns is wrapped tightly at the left end where uniform magnetic filed B exists in vertically downward direction. Air of density ρ hits the half of the right part of the rod with velocity V as shown in the fig. What should be current in clockwise direction (as seen from O) in the coil so that rod remains horizontal? Give answer in mA.

0 ) with velocity v0 = 3 j + 4 k m/s at t = 0 as shown in the figure [ Given qB0 / m = 1 rad/s ] [ No other field is present ] A negatively charged particle of mass m having magnitude of charge q enters a magnetic field B = B0 K T at point P ( 3 M
