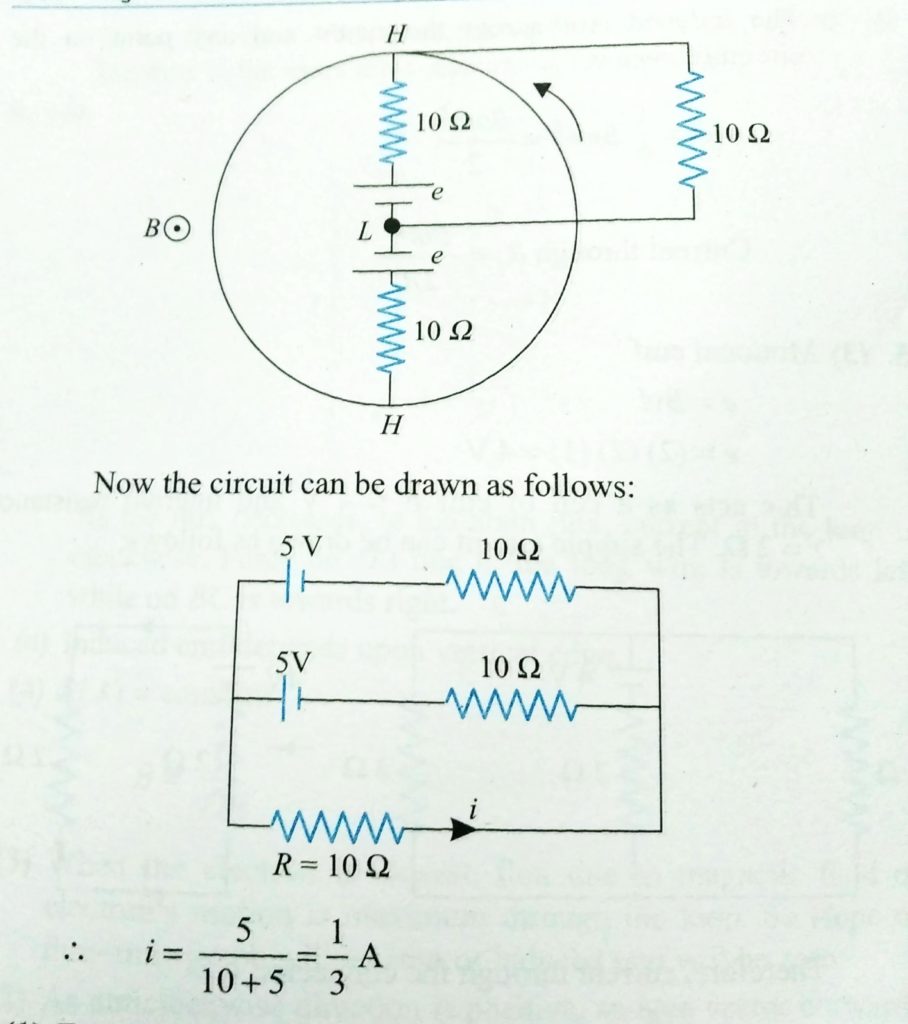

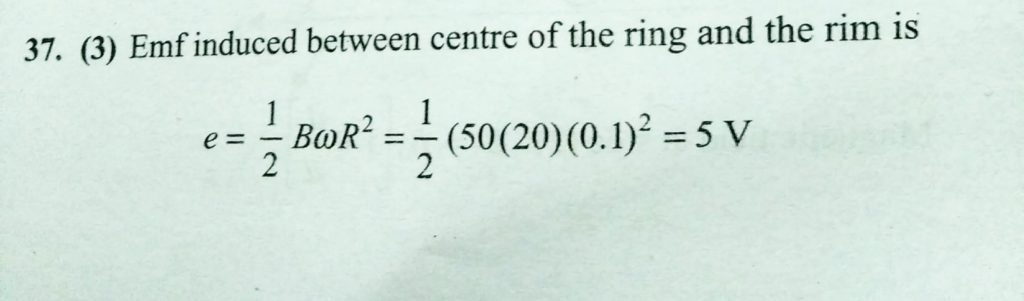

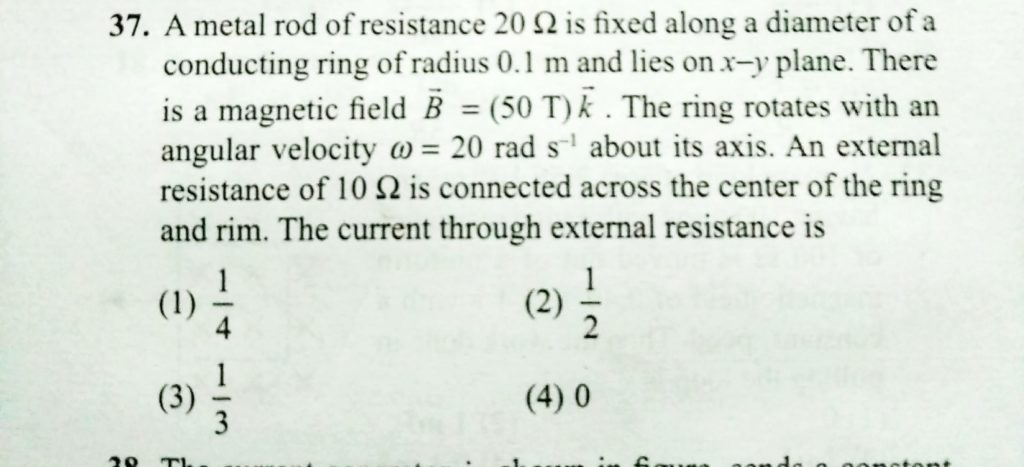

A metal rod of resistance 20 Ω is fixed along a diameter of a conducting ring of radius 0.1 m and lies on x−y plane. There is a magnetic field B = ( 50 T) k. The ring rotates with an angular velocity ω = 20 rad/s about its axis. An external resistance of 10 Ω is connected across the center of the ring and rim. The current external resistance is
