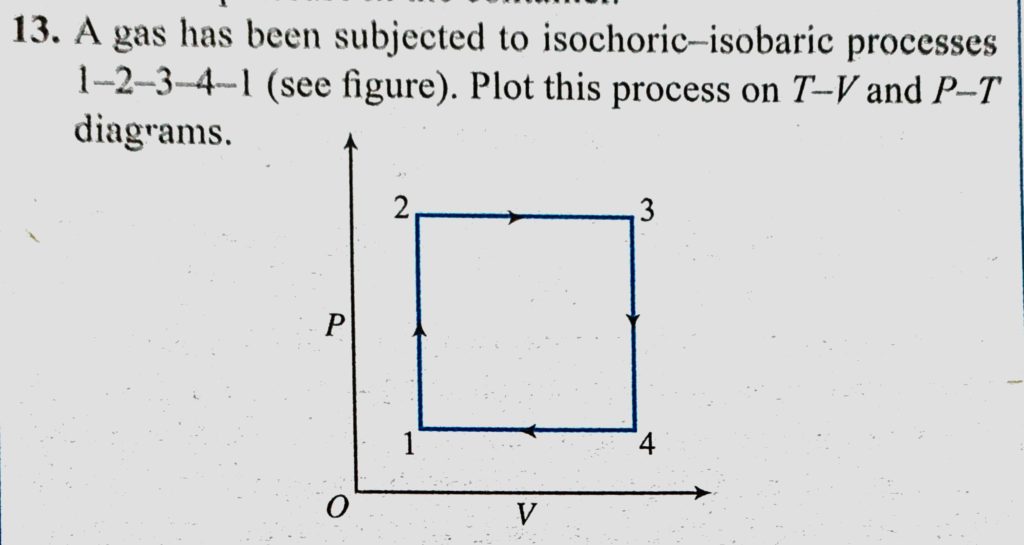

A gas has been subjected to isochoric-isobaric processes 1-2-3-4-1 (see figure). Plot this process on T-V and P-T diagrams.

A gas has been subjected to isochoric-isobaric processes 1-2-3-4-1 (see figure). Plot this process on T-V and P-T diagrams.
