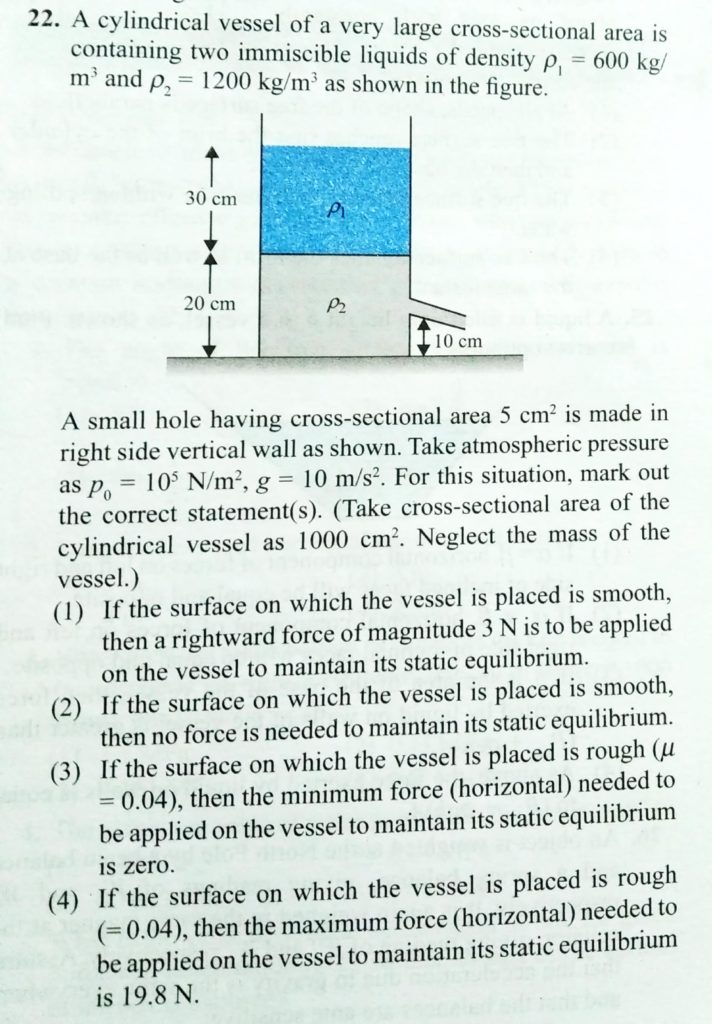

Sahay Sir > Question Answers > Uncategorised (JEE Advanced Physics by BM Sharma + GMP Solutions) > A cylindrical vessel of a very large cross sectional area is containing two immiscible liquids of density ρ1 = 600 kg/m^3 and ρ2 = 1200 kg/m^ 3 as shown in the figure. A small hole having cross sectional area 5 cm^2 is made in right side vertical wall as shown. Take atmospheric pressure as p0 = 10^5 N/m^2,g = 10 m/s^2. For this situation mark out the correct statement (s). Take cross sectional area of the cylindrical vessel as 1000 cm^2. Neglect the mass of the vessel.

A cylindrical vessel of a very large cross sectional area is containing two immiscible liquids of density ρ1 = 600 kg/m^3 and ρ2 = 1200 kg/m^ 3 as shown in the figure. A small hole having cross sectional area 5 cm^2 is made in right side vertical wall as shown. Take atmospheric pressure as p0 = 10^5 N/m^2,g = 10 m/s^2. For this situation mark out the correct statement (s). Take cross sectional area of the cylindrical vessel as 1000 cm^2. Neglect the mass of the vessel.

a liquid is filled into the vessel up to a height h and the forces exerted against the liquid by the walls of the vessel are shown by arrows In the following figure shown the force being everywhere perpendicular to the walls of the vessel. For this situation mark out the correct statement(s).
