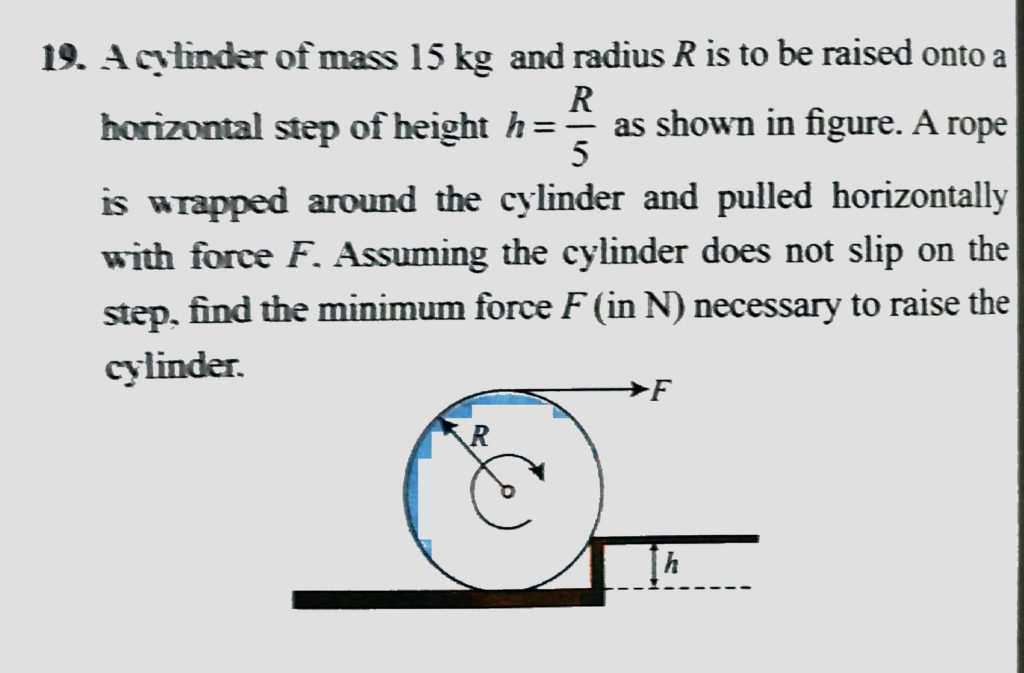

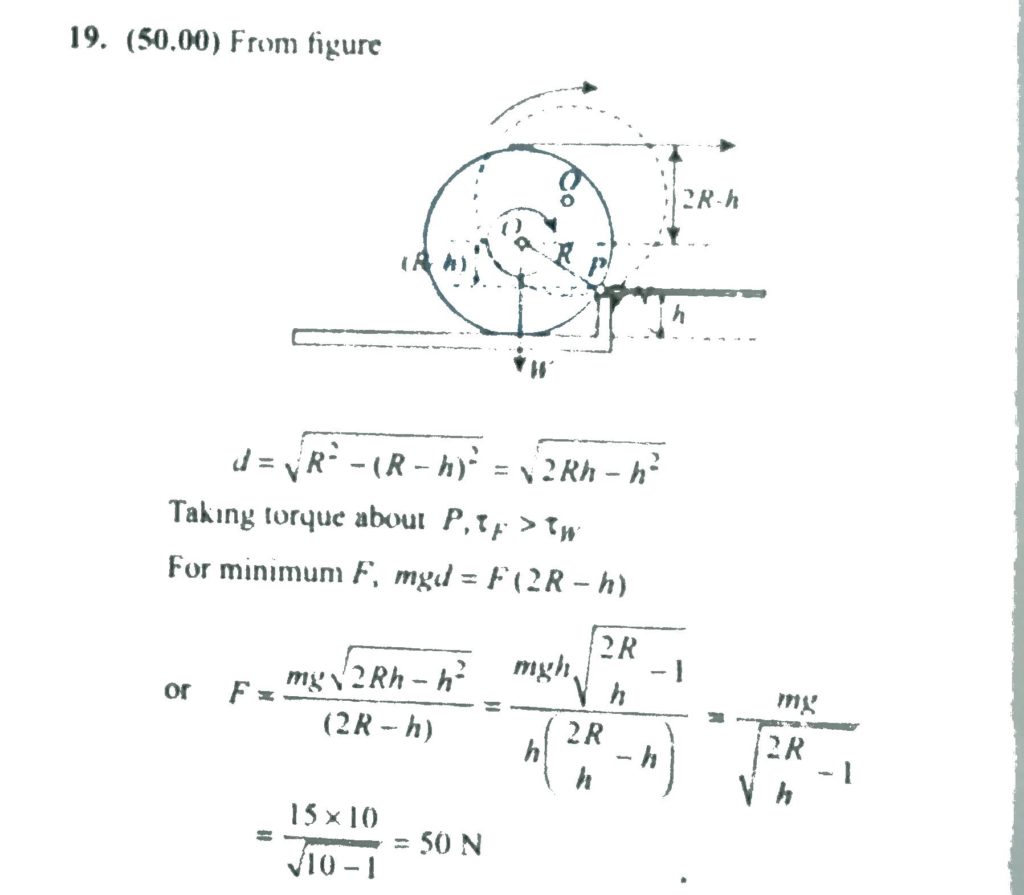

A cylinder of mass 15 kg and radius R is to be raised onto a horizontal step of height h = R/5 as shown. A rope is wrapped around the cylinder and pulled horizontally. Assuming no slipping, find the minimum value of F to raise the cylinder.

A cylinder of mass 15 kg and radius R is to be raised onto a horizontal step of height h = R/5 as shown. A rope is wrapped around the cylinder and pulled horizontally. Assuming no slipping find the minimum value of F to raise the cylinder.
