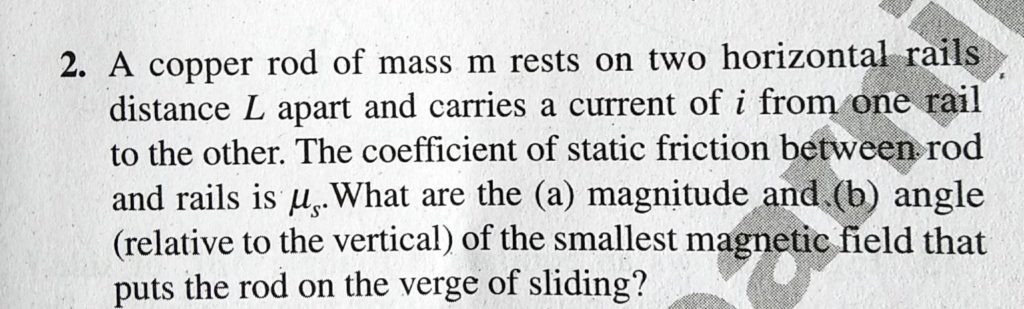

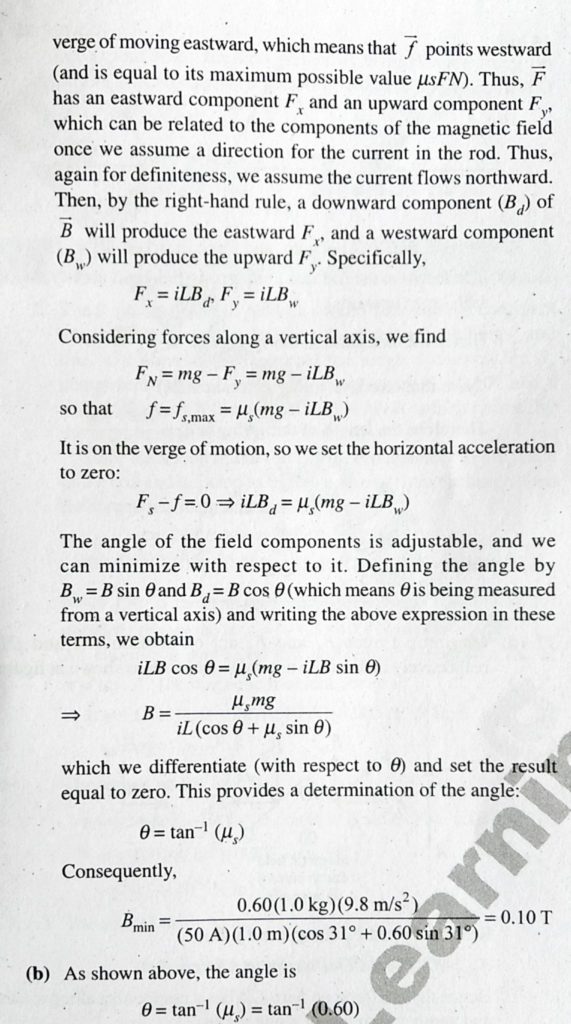

A copper rod of mass m rests on two horizontal rails distance L apart and carries a current of I from one rail to the other. The coefficient of static friction between rod and rails is μs What are the (a) magnitude and (b) angle (relative to the vertical) of the smallest magnetic field that puts the rod on the verge of sliding?

diverging magnetic field. The magnetic field at the ring is everywhere of the same magnitude B Figure shows a wire ring of radius a that is perpendicular to the general direction of a radially sysmmetric what is the net force on the square coil ?
