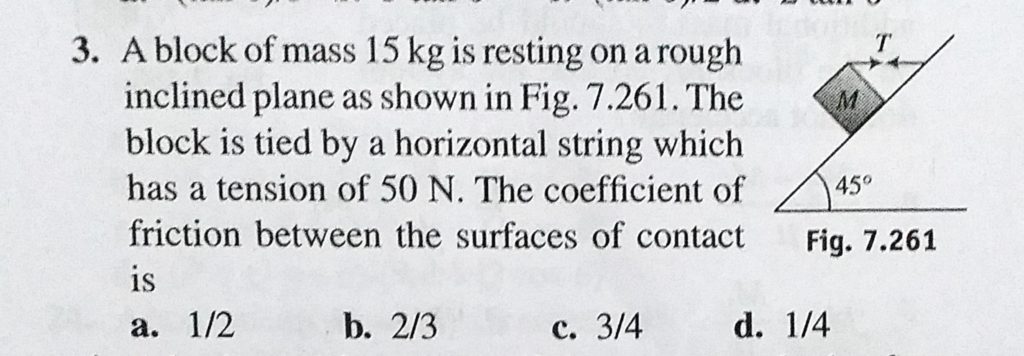

A block of mass 15 kg is resting on a rough inclined plane as shown in Fig. 7.261. The block is tied by a horizontal string which has a tension of 50 N. The coefficient of friction between the surfaces
