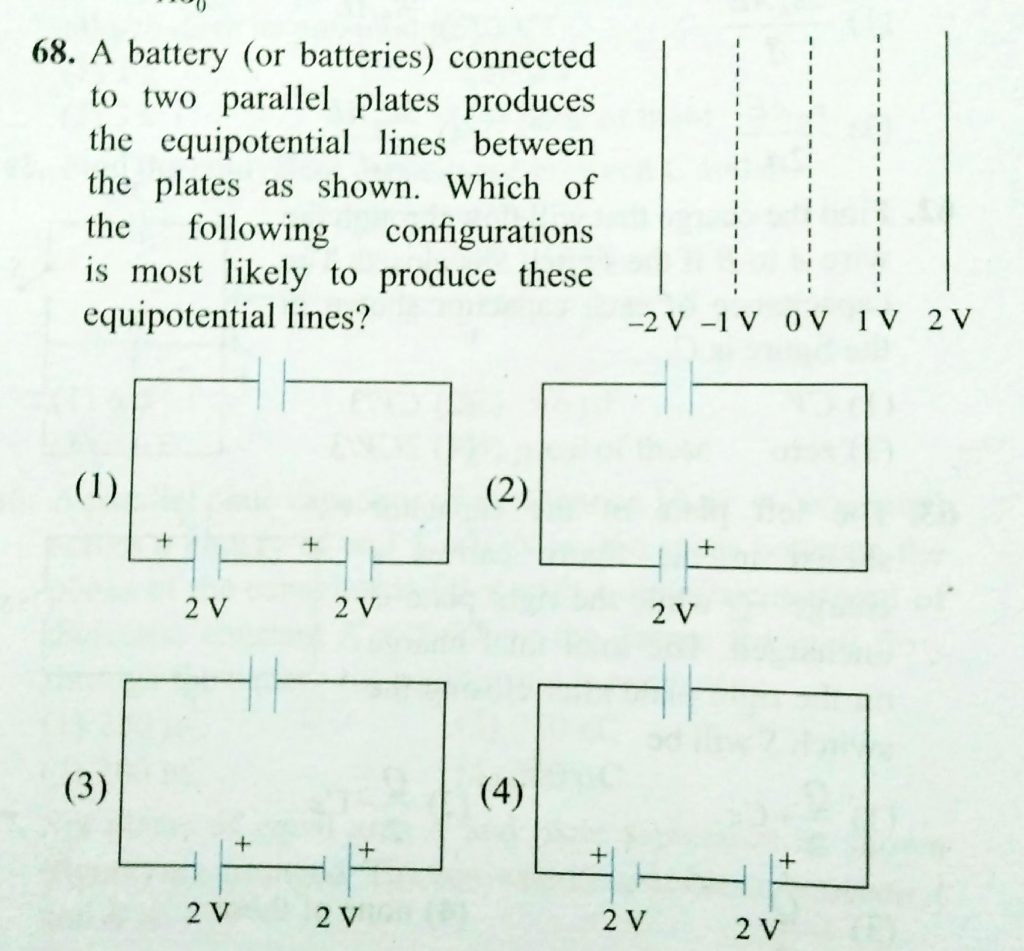

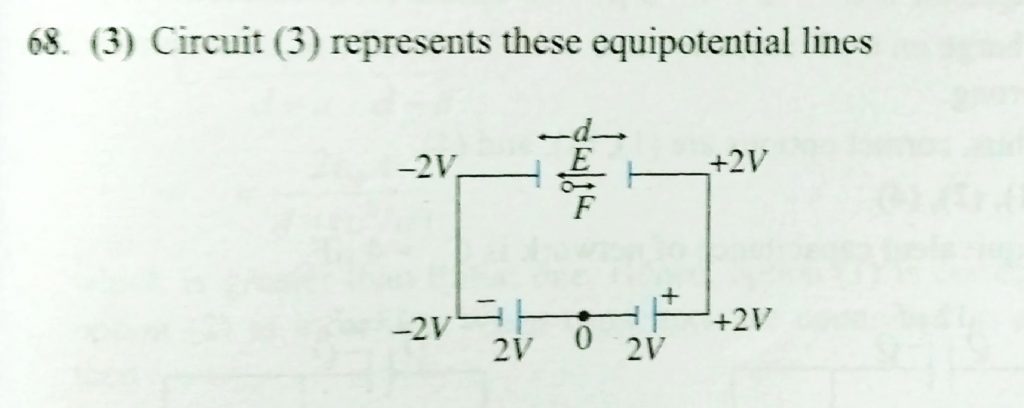

A battery (or batteries) connected to two parallel plates produces the equipotential lines between the plates as shown. Which of the following configurations is most likely to produce these equipotential lines?

are placed parallel to each other at a distance d. One plate is connected to a battery of emf E and its negative is earthed. The other plate is also earthed. The charge drawn by plate is each of area A Two plates
